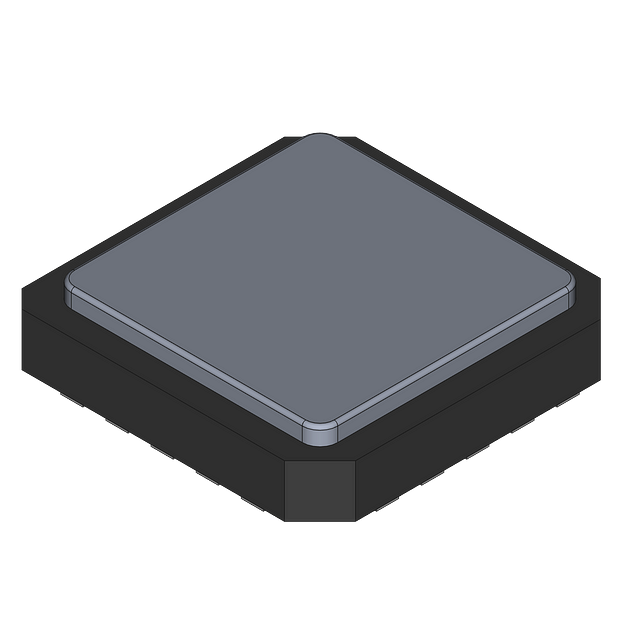

画像はあくまで参考です。
5962-7802003M2A
-
Texas Instruments
-
Logic - Buffers, Drivers, Receivers, Transceivers
- 20-CLCC
- Quadruple Differential Line eceiver 20-LCCC -55 to 125
Date Sheet
在庫數 0
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：6 Weeks
- Package / Case：20-CLCC
- Mounting Type：Surface Mount
- Surface Mount：YES
- Number of Pins：20
- Supplier Device Package：20-LCCC (8.89x8.89)
- Number of Terminals：20
- Schedule B：8542390000
- Manufacturer Lifecycle Status：ACTIVE (Last Updated: 6 days ago)
- Package：Tube
- Mfr：Texas Instruments
- Product Status：Active
- RoHS：Compliant
- Package Description：LCC-20
- Package Style：CHIP CARRIER
- Package Body Material：CERAMIC, METAL-SEALED COFIRED
- Package Equivalence Code：LCC20,.35SQ
- Operating Temperature-Min：-55 °C
- Supply Voltage-Nom：5 V
- Reflow Temperature-Max (s)：NOT SPECIFIED
- Supply Voltage-Min：4.5 V
- Operating Temperature-Max：125 °C
- Manufacturer Part Number：5962-7802003M2A
- Interface Standards：EIA-422-B; TIA-422-B; EIA-423-B; TIA-423-B; V.10; V.11
- Package Code：QCCN
- Package Shape：SQUARE
- Manufacturer：Texas
- Part Life Cycle Code：Active
- Ihs Manufacturer：Texas INC
- Supply Voltage-Max：5.5 V
- Risk Rank：5.33
- Part Package Code：QLCC
- Usage Level：Military grade
- Packaging：Rail/Tube
- Series：*
- Operating Temperature：-55°C ~ 125°C (TA)
- Part Status：Production (Last Updated: 6 days ago)
- ECCN Code：EAR99
- Type：Receiver
- Max Operating Temperature：125 °C
- Min Operating Temperature：-55 °C
- HTS Code：8542.39.00.01
- Subcategory：Line Driver or Receivers
- Technology：BIPOLAR
- Voltage - Supply：5 V
- Terminal Position：QUAD
- Terminal Form：NO LEAD
- Peak Reflow Temperature (Cel)：NOT SPECIFIED
- Number of Functions：4
- Terminal Pitch：1.27 mm
- Reach Compliance Code：not_compliant
- JESD-30 Code：S-CQCC-N20
- Qualification Status：Qualified
- Brand Name：Texas
- Power Supplies：5 V
- Temperature Grade：MILITARY
- Nominal Supply Current：70 mA
- Max Supply Current：70 mA
- Supply Current-Max：70 mA
- Logic Function：Receiver
- Data Rate：-
- Output Characteristics：3-STATE
- Seated Height-Max：2.03 mm
- Differential Output：NO
- Output Polarity：TRUE
- Protocol：RS422, RS423
- Input Characteristics：DIFFERENTIAL SCHMITT TRIGGER
- Interface IC Type：LINE RECEIVER
- Number of Drivers/Receivers：0/4
- Screening Level：MIL-STD-883
- Receiver Number of Bits：4
- Duplex：-
- Receiver Hysteresis：50 mV
- ESD Protection：No
- Receive Delay-Max：35 ns
- Supply Voltage1-Nom：5 V
- Output Low Current-Max：0.008 A
- Number of Receivers：4
- Voltage - Supply (Max)：5.5 V
- Voltage - Supply (Min)：4.5 V
- Supply Voltage1-Min：4.5 V
- Supply Voltage1-Max：5.5 V
- Width：8.89 mm
- Length：8.89 mm
- Height：2.03 mm
- Thickness：1.83 mm
- RoHS Status：RoHS Compliant
- Radiation Hardening：No
- Lead Free：Contains Lead
