971111-1

TE Connectivity

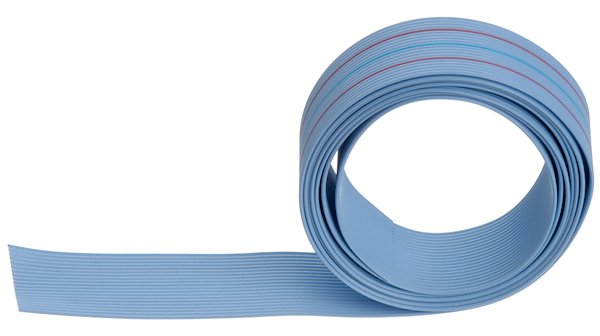

Flat Flex, Ribbon Jumper Cables
Flat Cable Polyvinyl Chloride 20Conductors 28AWG 300VAC Gray/Red Edge 152.4m T/R Automotive
Date Sheet

在庫數 0

小計金額 $0.00000

仕様よくある質問

Lifecycle Status：Production (Last Updated: 1 week ago)
Mount：Cable
Conductor Material：Copper
Insulation Materials：PVC
Manufacturer Lifecycle Status：ACTIVE (Last Updated: 1 week ago)
Voltage, Rating：30 V
Voltage Rating (DC)：300 V
Cable Type：Flat
Voltage Rating Max：300VAC
Product Depth (mm)：25.4 mm
Cable Pitch (mm)：1.27
Operating Temp Range：-20C to 105C
Wire Size：28 AWG
Package Description：ROHS COMPLIANT
Insulator Material：POLYVINYL CHLORIDE
Operating Temperature-Min：-20 °C
Operating Temperature-Max：105 °C
Rohs Code：Yes
Manufacturer Part Number：971111-1
Manufacturer：TE Connectivity
Part Life Cycle Code：Active
Ihs Manufacturer：TE CONNECTIVITY LTD
Risk Rank：1.48
Packaging：Tape and Reel
Type：Flat Cable
Max Operating Temperature：105 °C
Min Operating Temperature：-20 °C
Color：Grey
Capacitance：40.5 pF
Pitch：1.27 mm
Shielding：Unshielded
Depth：25.4 mm
Reach Compliance Code：compliant
Current Rating：2 A
Number of Conductors：20
Approval Agency：CSA, UL
Wire Gauge：28 AWG
ELV：Compliant
Max Voltage Rating (AC)：300 V
Connector Support Type：WIRE AND CABLE
Impedance：105 Ω
Cable Length：152.4 m
Wire/Cable Gauge：28 AWG
Propagation Delay：1.45 ns
Wire/Cable Diameter：31.75 mm
Cable Diameter：Not Required mm
Cable Pitch：1.27 mm
Rated Voltage：300 V
Stranding：7X36
Wire and Cable Name：FLAT RIBBON CABLE
Number of Strands：7
Strand Size：36 AWG
Height：890 µm
Length：152.4 m
Width：25.4 mm
Product Height (mm)：0.89 mm
Radiation Hardening：No
RoHS Status：RoHS Compliant
