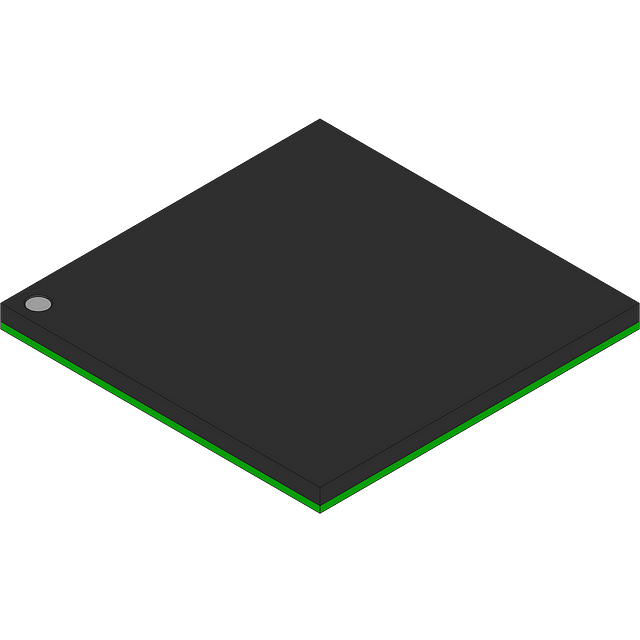

LC4512V-75F256C

Lattice Semiconductor
Embedded - CPLDs (Complex Programmable Logic Devices)
FBGA
CPLD ispMACH® 4000V Family 512 Macro Cells 151.5MHz EECMOS Technology 3.3V 256-Pin FPBGA
Date Sheet

在庫數 5

小計金額 $0.00000

仕様よくある質問

Package / Case：FBGA
Mount：Surface Mount
Mounting Type：Surface Mount
Surface Mount：YES
Number of Pins：256
Supplier Device Package：256-FPBGA (17x17)
Number of Terminals：256
Memory Types：EEPROM
Current - Supply (Nom)：14 mA
Number of I/Os：48
Package：Bulk
Number of Macrocells：512
Mfr：Lattice Semiconductor Corporation
Product Status：Active
Package Description：FPBGA-256
Package Style：GRID ARRAY
Moisture Sensitivity Levels：3
Package Body Material：PLASTIC/EPOXY
Package Equivalence Code：BGA256,16X16,40
Supply Voltage-Nom：3.3 V
Reflow Temperature-Max (s)：30
Supply Voltage-Min：3 V
Rohs Code：No
Manufacturer Part Number：LC4512V-75F256C
Clock Frequency-Max：111 MHz
Package Code：BGA
Package Shape：SQUARE
Manufacturer：Lattice Semiconductor Corporation
Part Life Cycle Code：Obsolete
Number of I/O Lines：208
Ihs Manufacturer：LATTICE SEMICONDUCTOR CORP
Supply Voltage-Max：3.6 V
Risk Rank：8.6
Part Package Code：BGA
Operating Temperature：0°C ~ 90°C (TJ)
Series：ispMACH® 4000
JESD-609 Code：e0
ECCN Code：EAR99
Terminal Finish：Tin/Lead (Sn63Pb37)
Max Operating Temperature：90 °C
Min Operating Temperature：0 °C
Additional Feature：YES
HTS Code：8542.39.00.01
Subcategory：Programmable Logic Devices
Technology：CMOS
Voltage - Supply：3.3 V
Terminal Position：BOTTOM
Terminal Form：BALL
Peak Reflow Temperature (Cel)：225
Terminal Pitch：1 mm
Reach Compliance Code：not_compliant
Frequency：178.57 MHz
Pin Count：256
JESD-30 Code：S-PBGA-B256
Qualification Status：Not Qualified
Power Supplies：3.3 V
Programmable Type：In System Programmable
Propagation Delay：7.5 ns
Current - Supply：14 mA
Organization：4 DEDICATED INPUTS, 208 I/O
Seated Height-Max：2.1 mm
Programmable Logic Type：EE PLD
Number of Logic Elements/Cells：36
Max Frequency：322 MHz
Number of Programmable I/O：48
Number of Logic Blocks (LABs)：32
Output Function：MACROCELL
Number of Macro Cells：512
JTAG BST：YES
Number of Dedicated Inputs：4
Voltage Supply - Internal：3V ~ 3.6V
Voltage - Supply (Max)：3.6 V
Voltage - Supply (Min)：3 V
Delay Time tpd(1) Max：7.5 ns
Number of Logic Elements/Blocks：32
In-System Programmable：YES
Width：17 mm
Length：17 mm
RoHS Status：RoHS Compliant
