TR36M180-02E01-Level-VI

Cincon
AC DC Desktop, Wall Adapters

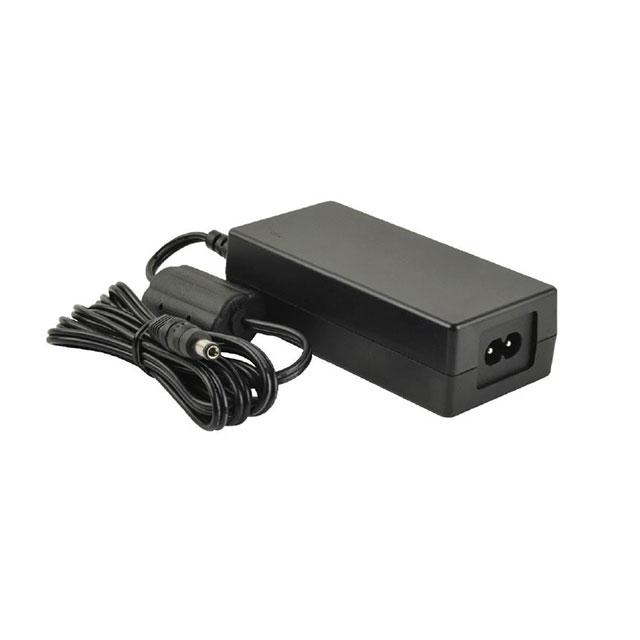

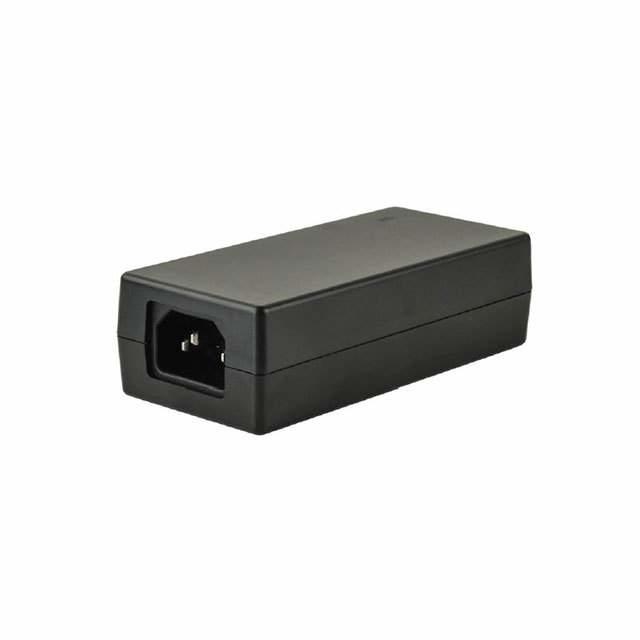

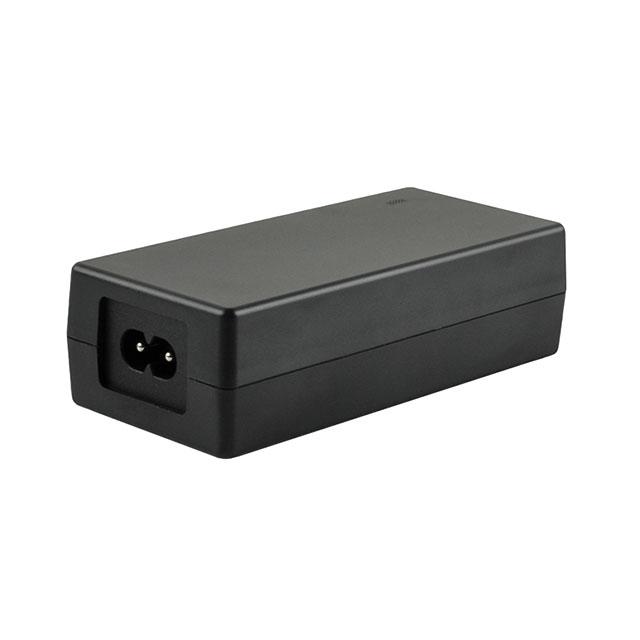

Desktop AC Adapters Switching Adapter, Level VI, Desktop, Medical, 36 Watt, 80-264VAC Input, 18VDC Output, 2.0A, 5.5x2.5x12mm Right Angle, DC Cable 720mm, UL1185 with OVP
Date Sheet

在庫數 0

小計金額 $0.00000

仕様よくある質問

Shipping Restrictions：This product may require additional documentation to export from the United States.
RoHS：Details
Output Voltage-Channel 1：18 V
Output Current-Channel 1：2 A
Industry：Medical
DC Output Connector：2.5 mm Barrel Plug, Right Angle (2.5x5.5)
DC Output Cord Length：720 mm
Approvals：EN 60601-1, IEC 60601-1, ANSI/AAMI ES60601-1
Center Pin Length：12 mm
Connector A Polarity：Center Positive
Maximum Operating Temperature：+ 60 C
Minimum Operating Temperature：- 20 C
Mounting Styles：Desktop
Factory Pack QuantityFactory Pack Quantity：1
AC Plug included/required：Required
Series：TR36M
Connector Type：Barrel Connector
Number of Outputs：1 Output
Efficiency：Level VI
Output Power：36 W
Operating Temperature Range：- 20 C to + 60 C
Load Regulation：Regulated
Compliance：EN 60601-1, IEC 60601-1, ANSI/AAMI ES60601-1
Input Voltage：80 VAC to 264 VAC
Height：22.5 mm
Length：100 mm
Width：45 mm
