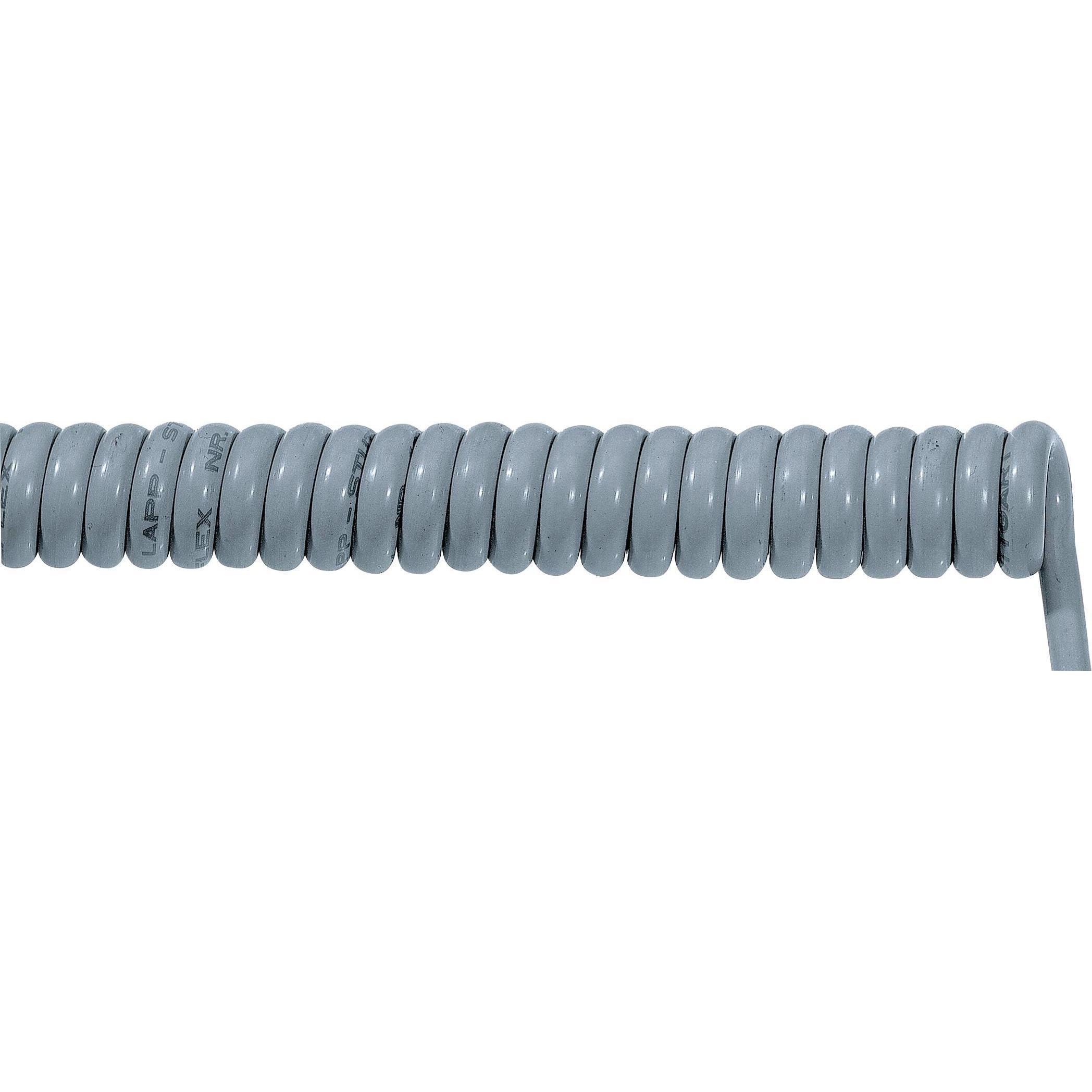

LAPP 73220329 Spiral cable UNITRONIC? SPIRAL LiF2Y11Y 500 mm / 2000 mm 7 x 0.14 mm2 Grey 1 pc(s)
Date Sheet

在庫數 0

小計金額 $0.00000

仕様よくある質問

Cable Types：UNITRONIC® SPIRAL LiF2Y11Y
Spiral length (min.)：500mm
Spiral lenght (max.)：2000mm
No. of leads：7x
Cross section (each core)：0.14mm²
Cross section：7 x 0.14 mm²
Cable features：UV-resistant,PUR coating,Oil-resistant,Unshielded,highly flexible
Outside Ø：20mm
Factory colour：Grey
Content：1pc(s)
Peak operating voltage：(not for heavy current applications) 250V
Halogen-free：No
Manufacturer part #：73220329
Insulation Materials：PUR
Min. temperature range (flexible installation)：-5°C
Max. temperature range (flexible installation)：+50°C
Core layout：Extra-fine strands according to VDE 0295, Class 6/IEC 60228. 6
RoHS-compliant：Yes
Certification marks：1200 V
Nominal voltage：250V
Wire ID code：DIN 47100
Spiral length (extended)：2000
Flame retardant：According to IEC/EN 60332-1-2
Colour outer sheath：Grey
Permitted cable outer temperature during assembling/handling：-5 - 50
Outer diameter approx.：5.1
Spiral length (retracted)：500
Core identification：Colour
Nominal cross section conductor：0.14
Nominal voltage U0：50
Nominal voltage U：50
Material outer sheath：Polyurethane (PUR)
Conductor category：Class 6 = very flexible
Type：Lapp
Shielded：No
