画像はあくまで参考です。
EN3P2M16X
-
Switchcraft Inc.
-
Circular Connectors

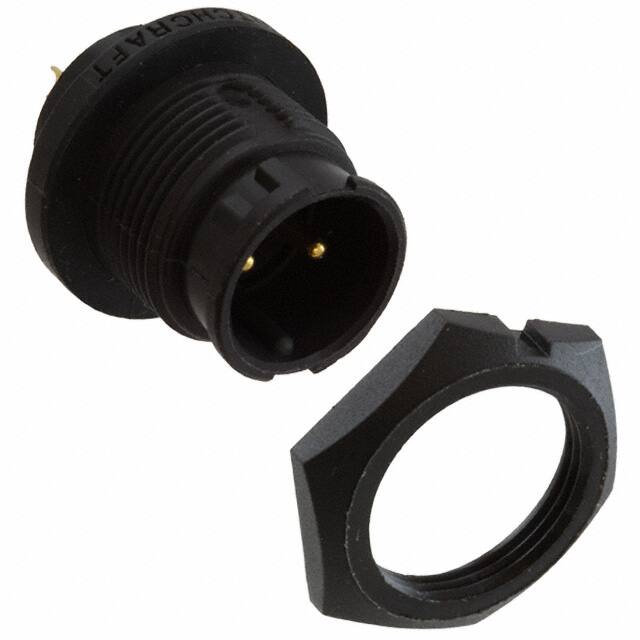

- Standard Circular Connector 2 PIN PANEL MT MALE
Date Sheet
在庫數 1696
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：8 Weeks
- Mounting Type：Bulkhead, Front Side Nut, Panel
- Mounting Feature：Bulkhead - Front Side Nut
- Shell Material：Thermoplastic
- Insert Material：Elastomer
- Contact Finish Mating：Gold
- Contact Materials：Copper Alloy
- Voltage Rated：250VAC/DC
- Operating Temperature：-40°C~65°C
- Packaging：Bulk
- Series：EN3®
- Published：2000
- Part Status：Active
- Moisture Sensitivity Level (MSL)：Not Applicable
- Termination：Solder Cup
- ECCN Code：EAR99
- Connector Type：Receptacle, Male Pins
- Number of Positions：2
- Color：Black
- Applications：General Purpose, Instrumentation, Marine, Medical
- Gender：Male
- Fastening Type：Bayonet Lock
- Current Rating (Amps)：13A
- Orientation：Keyed
- Shielding：Unshielded
- Ingress Protection：IP66/68 - Dust Tight, Water Resistant, Waterproof
- Reference Standard：UL
- Number of Contacts：2
- UL Flammability Code：UL94 V-0
- Body Depth：0.53 inch
- Current Rating (Max)：3A
- Length：24.2mm
- RoHS Status：ROHS3 Compliant
- Ratings：Dust Tight, IP16, IP66, Water Resistant, Waterproof
