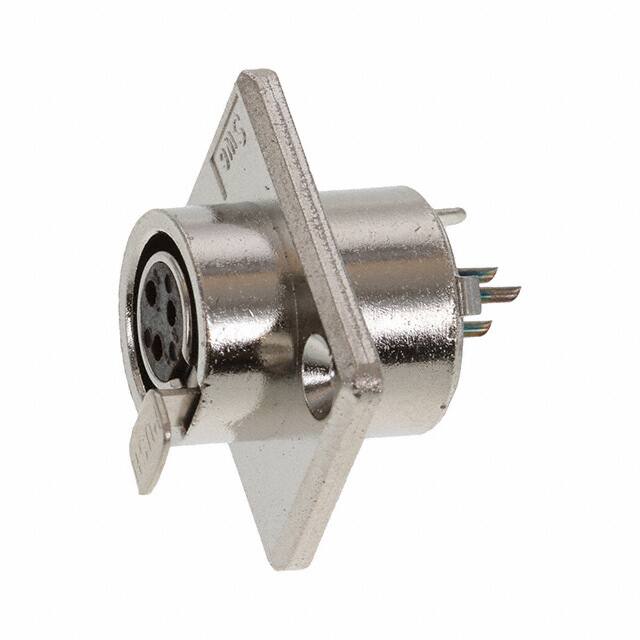

画像はあくまで参考です。
TY3FPC
-
Switchcraft Inc.
-
Circular Connectors
- Conn XLR Connector F 3 POS Solder ST Thru-Hole 3 Terminal 1 Port
Date Sheet
在庫數 0
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：12 Weeks
- Mount：Flanges, Panel, Through Hole
- Mounting Type：Panel Mount, Through Hole
- Mounting Feature：Flange
- Shell Material：Brass
- Insert Material：Polyphenylene Sulfide (PPS)
- Contact Finish Mating：Silver
- Contact Materials：Beryllium Copper
- Insulation Materials：Plastic
- Voltage Rated：125VAC
- Operating Temperature：-55°C~85°C
- Packaging：Bulk
- Series：TINI Q-G® TY
- Published：2002
- JESD-609 Code：e4
- Pbfree Code：yes
- Part Status：Active
- Moisture Sensitivity Level (MSL)：Not Applicable
- Termination：Solder
- ECCN Code：EAR99
- Connector Type：Plug, Female Sockets
- Number of Positions：3
- Applications：Audio
- Gender：Female
- Additional Feature：ROHS COMPLIANT
- Fastening Type：Latch Lock
- MIL Conformance：NO
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Total Number of Contacts：3
- Orientation：Keyed
- Depth：23.69mm
- Current Rating：5A
- Shell Finish：Nickel
- Number of Conductors：ONE
- Shell Size - Insert：Mini XLR
- Reliability：COMMERCIAL
- Body Breadth：0.74 inch
- Empty Shell：NO
- Backshell Type：SOLID
- Contact Style：RND PIN-SKT
- Body/Shell Style：RECEPTACLE
- Max Voltage Rating (AC)：125V
- Max Current Rating：5A
- Polarization Key：POLARIZED HOUSING
- Coupling Type：SNAP
- Number of Ports：1
- Number of Poles：3
- Features：Ground
- Height：24.38mm
- Length：18.79mm
- RoHS Status：ROHS3 Compliant
- Lead Free：Lead Free
