ATSAME54P20A-CTFT

在庫數 6000

小計金額 $0.00000

仕様よくある質問

Factory Lead Time：23 Weeks
Mounting Type：Surface Mount

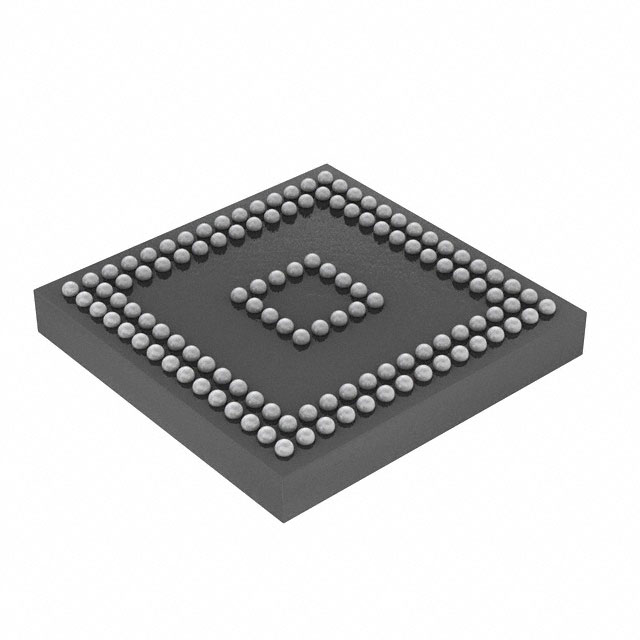

Package / Case：120-TFBGA
Surface Mount：YES
Data Converters：A/D 32x12b; D/A 2x12b
Number of I/Os：99
Usage Level：Automotive grade
Operating Temperature：-40°C~125°C TA
Packaging：Tape & Reel (TR)
Series：SAM E54
JESD-609 Code：e3
Part Status：Active
Moisture Sensitivity Level (MSL)：3 (168 Hours)
Number of Terminations：120
Terminal Finish：Matte Tin (Sn)
Voltage - Supply：3.3V
Terminal Position：BOTTOM
Terminal Form：BALL
Peak Reflow Temperature (Cel)：NOT SPECIFIED
Terminal Pitch：0.5mm
Reach Compliance Code：compliant
Time@Peak Reflow Temperature-Max (s)：NOT SPECIFIED
JESD-30 Code：S-PBGA-B120
Oscillator Type：Internal
Speed：120MHz
RAM Size：256K x 8
uPs/uCs/Peripheral ICs Type：MICROCONTROLLER, RISC
Core Processor：ARM® Cortex®-M4F
Peripherals：Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Clock Frequency：48MHz
Program Memory Type：FLASH
Core Size：32-Bit
Program Memory Size：1MB 1M x 8
Connectivity：CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD, QSPI, SPI, UART/USART, USB
Bit Size：32
Has ADC：YES
DMA Channels：YES
PWM Channels：YES
DAC Channels：YES
On Chip Program ROM Width：8
Screening Level：AEC-Q100; ISO/TS-16949
Voltage - Supply (Max)：3.63V
Voltage - Supply (Min)：1.71V
Length：8mm
Height Seated (Max)：1.2mm
Width：8mm
RoHS Status：RoHS Compliant
