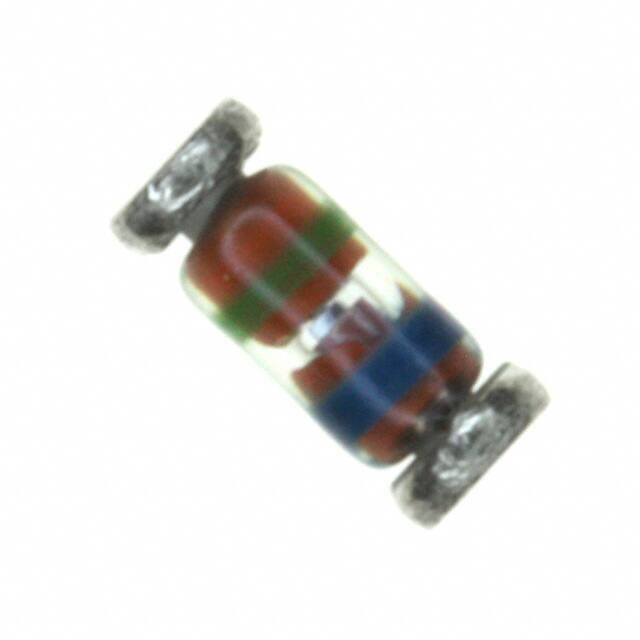

画像はあくまで参考です。

FLZ22VA

在庫數 83812

  • 1+: $0.05492
  • 10+: $0.05181
  • 100+: $0.04887
  • 500+: $0.04611
  • 1000+: $0.04350

小計金額 $0.05492

仕様 よくある質問
  • Mount:Surface Mount
  • Mounting Type:Surface Mount
  • Package / Case:DO-213AC, MINI-MELF, SOD-80
  • Number of Pins:2
  • Weight:51.84mg
  • Power Dissipation (Max):500mW
  • Operating Temperature:-65°C~175°C
  • Packaging:Tape & Reel (TR)
  • Tolerance:±3%
  • Pbfree Code:yes
  • Part Status:Obsolete
  • Moisture Sensitivity Level (MSL):1 (Unlimited)
  • Power Rating:500mW
  • Voltage - Rated DC:22V
  • Base Part Number:FLZ22
  • Working Voltage:20.6V
  • Impedance:25.6Ohm
  • Element Configuration:Single
  • Current - Reverse Leakage @ Vr:133nA @ 17V
  • Power Dissipation:500mW
  • Voltage - Forward (Vf) (Max) @ If:1.2V @ 200mA
  • Max Reverse Leakage Current:133nA
  • Impedance-Max:25.6Ohm
  • Test Current:5mA
  • Forward Voltage:1.2V
  • Zener Voltage:20.66V
  • Peak Reverse Current:133nA
  • Voltage Tolerance:2%
  • Zener Current:5mA
  • Radiation Hardening:No
  • RoHS Status:RoHS Compliant
  • Lead Free:Lead Free

在庫數 83812

  • 1+: $0.05492
  • 10+: $0.05181
  • 100+: $0.04887
  • 500+: $0.04611
  • 1000+: $0.04350

小計金額 $0.05492
