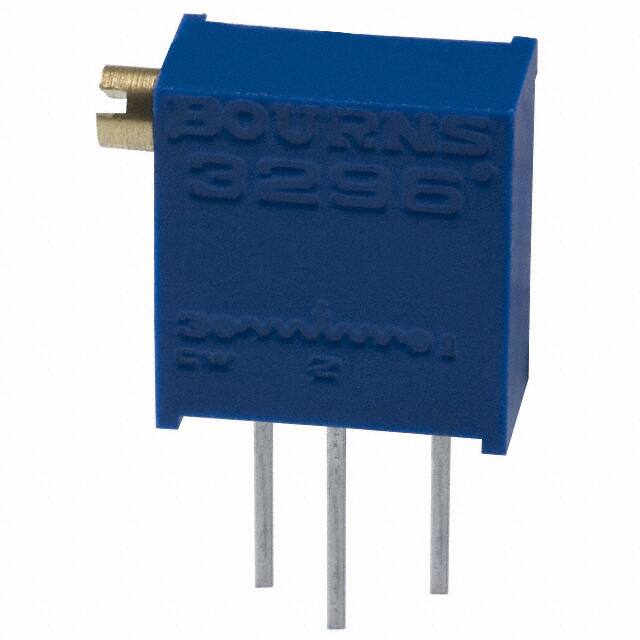

3296X-1-101LF

在庫數 40

小計金額 $1.78976

仕様よくある質問

Factory Lead Time：7 Weeks
Mount：PCB, Panel, Through Hole
Mounting Type：Through Hole
Terminal Shape：WIRE
Weight：850.485694mg
Resistive Material：Cermet
Packaging：Tube
Series：Trimpot® 3296 - Sealed
Published：2005
Size / Dimension：Rectangular - 0.395 x 0.190 Face x 0.395 H 10.03mmx4.83mmx10.03mm
Tolerance：±10%
JESD-609 Code：e3
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：Not Applicable
Number of Terminations：3
Termination：Pin
ECCN Code：EAR99
Temperature Coefficient：±100ppm/°C
Resistance：100Ohm
Terminal Finish：Matte Tin (Sn)
Max Operating Temperature：125°C
Min Operating Temperature：-55°C
Color：Blue
Power (Watts)：0.5W 1/2W
HTS Code：8533.40.80.50
Power Rating：500mW
Voltage - Rated DC：300V
Max Power Dissipation：500mW
Depth：4.83mm
Construction：Multi-Turn
Resistor Type：TRIMMER
Base Part Number：3296X
Military Standard：Not
Termination Style：PC Pins
Voltage - Rated AC：300V
Rated Power Dissipation (P)：0.5W
Actuator Type：SCREW
Lead Length：6.4mm
Lead Diameter：500 μm
Rated Temperature：70°C
Adjustment Type：Side Adjustment
Number of Turns：25
Taper：Linear
Actuator Orientation：HORIZONTAL
Ganging Number：1
Height：10.033mm
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free
