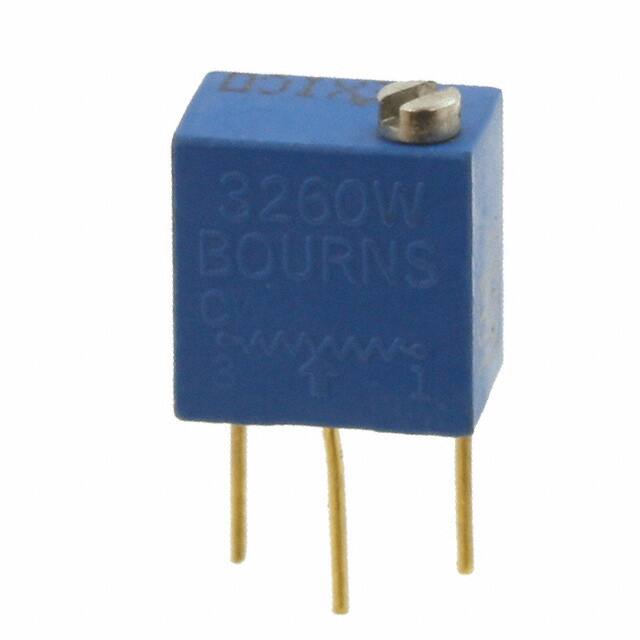

3260W-1-201

在庫數 61

小計金額 $25.10611

仕様よくある質問

Factory Lead Time：9 Weeks
Mount：PCB, Through Hole
Mounting Type：Through Hole
Weight：425.242847mg
Resistive Material：Wirewound
Packaging：Tube
Series：Trimpot® 3260 - Sealed
Published：2005
Size / Dimension：Rectangular - 0.250 x 0.170 Face x 0.250 H 6.35mmx4.32mmx6.35mm
Tolerance：±5%
JESD-609 Code：e4
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Number of Terminations：3
Termination：Pin
Temperature Coefficient：±70ppm/°C
Resistance：200Ohm
Terminal Finish：Gold (Au)
Max Operating Temperature：150°C
Min Operating Temperature：-65°C
Power (Watts)：0.25W 1/4W
Power Rating：250mW
Max Power Dissipation：250mW
Depth：4.32mm
Resistor Type：TRIMMER
Base Part Number：3260W
Military Standard：Not
Termination Style：PC Pins
Rated Power Dissipation (P)：0.25W
Actuator Type：SCREW
Lead Length：4.78mm
Lead Diameter：0.41 mm
Rated Temperature：85°C
Adjustment Type：Top Adjustment
Number of Turns：11
Taper：Linear
Actuator Orientation：VERTICAL
Rotation Angle：3960 deg
Ganging Number：1
Height：6.35mm
Radiation Hardening：No
RoHS Status：ROHS3 Compliant
