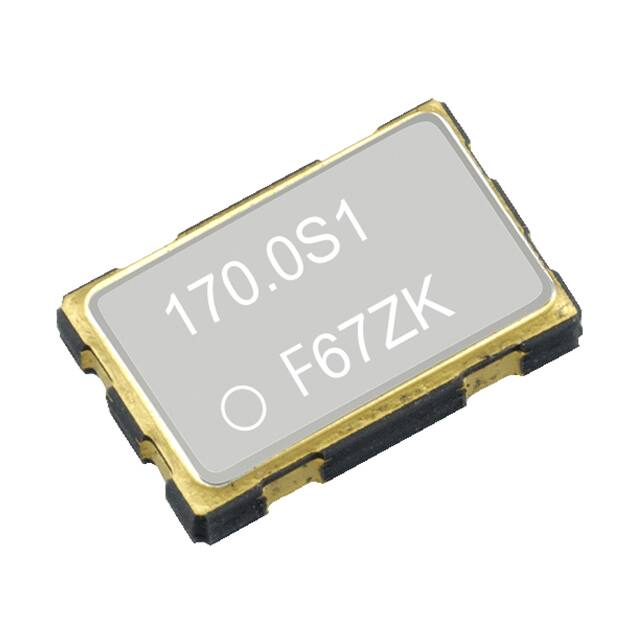

SG-9101CB-D05PGABB

在庫數 48

小計金額 $3.66045

仕様よくある質問

Mounting Type：Surface Mount
Package / Case：4-SMD, No Lead
Operating Temperature：-40°C~85°C
Packaging：Tube
Series：SG-9101
Size / Dimension：0.197Lx0.126W 5.00mmx3.20mm
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Type：XO (Standard)
Voltage - Supply：1.62V~3.63V
Output：CMOS
Function：Enable/Disable
Base Resonator：Crystal
Current - Supply (Disable) (Max)：3.7mA
Programmable Type：Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Available Frequency Range：670kHz~170MHz
Spread Spectrum Bandwidth：-0.50% Down Spread
Height Seated (Max)：0.051 1.30mm
RoHS Status：ROHS3 Compliant
