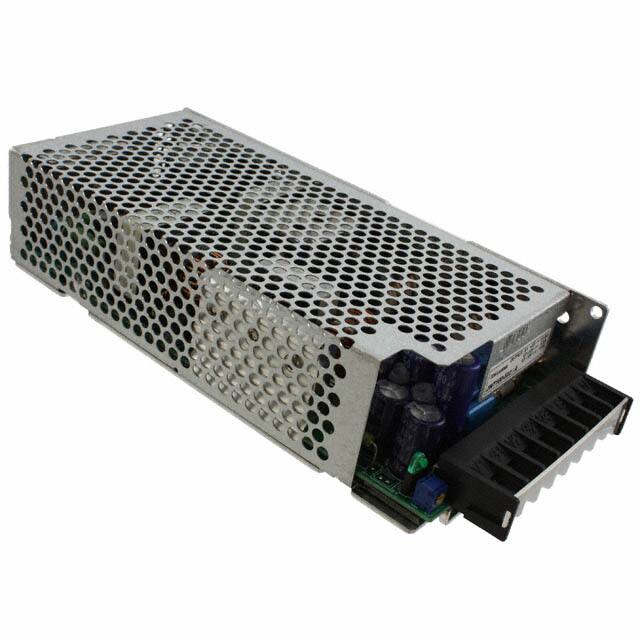

JWT1005FF/RB

在庫數 0

小計金額 $0.00000

仕様よくある質問

Mounting Type：Chassis Mount
Operating Temperature：-10°C~65°C With Derating
Series：JWT (100W)
Published：2012
Size / Dimension：7.99Lx3.62W x 1.89 H 203.0mmx92.0mmx48.0mm
Part Status：Last Time Buy
Type：Open Frame
Applications：ITE (Commercial)
Power (Watts)：100W
Additional Feature：REMOTE SHUTDOWN
Number of Outputs：3
Approval Agency：CE
Efficiency：72%
Voltage - Isolation：3kV
Output Voltage：5V
Protections：OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Voltage - Output 2：15V
Total Power Output-Max：100W
Voltage - Output 3：-15V
Ripple Voltage (Main Out)：0.04242Vrms
Features：Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input
Height：48mm
Width：92mm
RoHS Status：RoHS Compliant
