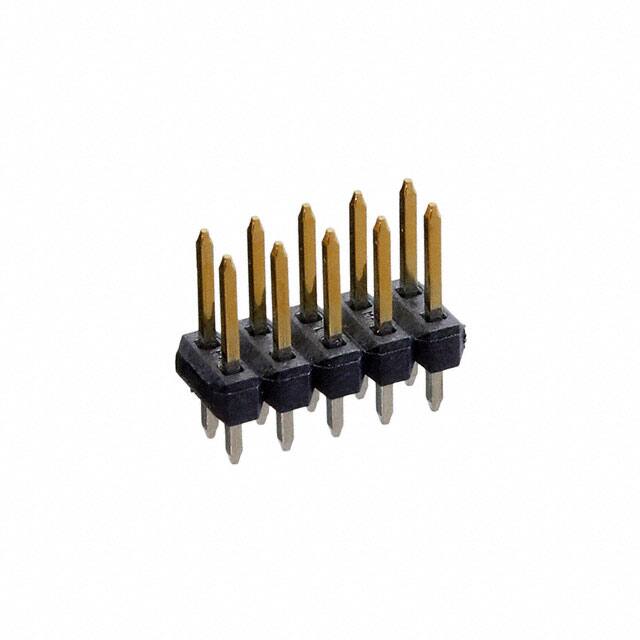

画像はあくまで参考です。
0879141013
-
Molex
-
Rectangular Connectors - Headers, Male Pins
- CONN HEADER VERT 10POS 2.54MM
Date Sheet
在庫數 9720
- 1+： $1.07469
- 10+： $1.01386
- 100+： $0.95647
- 500+： $0.90233
- 1000+： $0.85125
小計金額 $1.07469
仕様 よくある質問
- Factory Lead Time：13 Weeks
- Mounting Type：Through Hole
- Contact Shape：Square
- Mounting Option 1：LOCKING
- Contact Finish Mating：Gold
- Contact Length-Mating：0.230 5.84mm
- Contact Materials：Copper Alloy
- Insulation Materials：Liquid Crystal Polymer (LCP), Glass Filled
- Operating Temperature (Min.)：-55°C
- Packaging：Tray
- Series：C-Grid 87914
- Pbfree Code：yes
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder
- ECCN Code：EAR99
- Connector Type：Header, Breakaway
- Number of Positions：10
- Applications：Automotive, General Purpose, Lighting, Medical, Telecommunications
- Number of Rows：2
- HTS Code：8536.69.40.40
- Fastening Type：Push-Pull
- Contact Type：Male Pin
- Insulation Height：0.090 2.29mm
- Style：Board to Board or Cable
- Number of Positions Loaded：All
- Pitch - Mating：0.100 2.54mm
- Insulation Color：Black
- Number of Conductors：ONE
- Reference Standard：UL
- Reliability：COMMERCIAL
- Row Spacing - Mating：0.100 (2.54mm)
- Contact Length - Post：0.110 2.79mm
- Shrouding：Unshrouded
- Contact Finish - Post：Tin
- Rated Current (Signal)：3A
- Overall Contact Length：0.430 10.92mm
- Mating Contact Pitch：0.1 inch
- Contact Finish Thickness - Mating：10.0μin 0.25μm
- Contact Finish Thickness - Post：74.8μin 1.90μm
- Material Flammability Rating：UL94 V-0
- RoHS Status：ROHS3 Compliant
