HTSS-105-04-L-D-RA

Samtec Inc.
Rectangular Connectors - Headers, Male Pins
SAMTEC HTSS-105-04-L-D-RA Board-To-Board Connector, Right Angle, HTSS Series, 10 Contacts, Header, 2.54 mm, Through Hole
Date Sheet

在庫數 64

1+： $2.69321
10+： $2.54076
100+： $2.39694
500+： $2.26127
1000+： $2.13327

小計金額 $2.69321

仕様よくある質問

Factory Lead Time：3 Weeks
Mounting Type：Through Hole, Right Angle
Contact Shape：Square
Housing Material：Polychlorinated
Mounting Option：LOCKING
Contact Finish Mating：Gold
Contact Length-Mating：0.250 6.35mm
Contact Materials：Phosphor Bronze
Insulation Materials：Liquid Crystal Polymer (LCP)
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：Flex Stack, HTSS
Published：2014
JESD-609 Code：e3
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder
ECCN Code：EAR99
Connector Type：Header
Number of Positions：10
Number of Rows：2
Gender：Male
HTS Code：8536.69.40.40
Fastening Type：Push-Pull
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Male Pin
Mixed Contacts：NO
Option：GENERAL PURPOSE
Orientation：Right Angle
Depth：12.64mm
Insulation Height：0.365 9.27mm
Style：Board to Board or Cable
Number of Positions Loaded：All
Pitch - Mating：0.1 inch
Insulation Color：Natural
Military Standard：NO
Number of Conductors：ONE
Reference Standard：UL
Reliability：COMMERCIAL
Row Spacing - Mating：0.100 (2.54mm)
Contact Length - Post：0.130 3.30mm
Shrouding：Shrouded - 4 Wall
Contact Finish - Post：Tin
PCB Contact Pattern：RECTANGULAR
Body Breadth：0.365 inch
UL Flammability Code：UL94 V-0
Rated Current (Signal)：3A
Insulation Resistance：5000000000Ohm
Polarization Key：POLARIZED HOUSING
Dielectric Withstanding Voltage：1400VAC V
Features：Keying Slot
Length：16.51mm
Contact Finish Thickness - Mating：10.0μin 0.25μm
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：ROHS3 Compliant

在庫數 64

1+： $2.69321
10+： $2.54076
100+： $2.39694
500+： $2.26127
1000+： $2.13327

小計金額 $2.69321

類似スペック製品

HTSS-105-04-L-D-RA Samtec Inc.
最低価格$2.6932068 在庫數 64

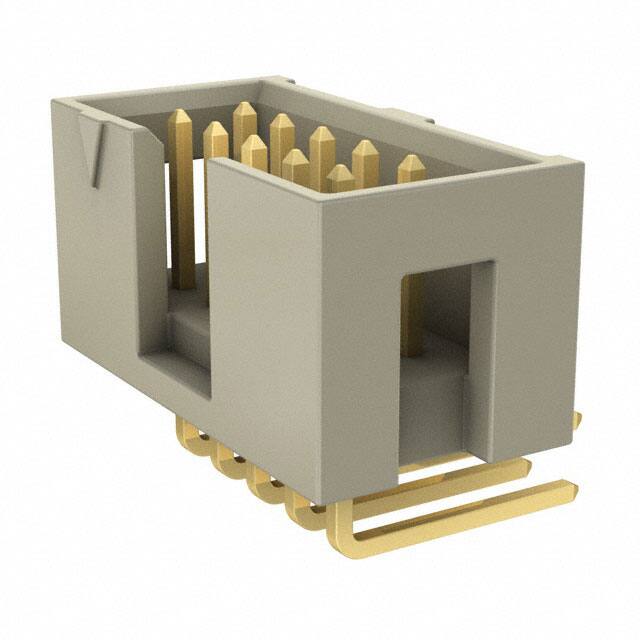

HTST-105-05-G-D-RA Samtec Inc.
最低価格$2.9294118 在庫數 18

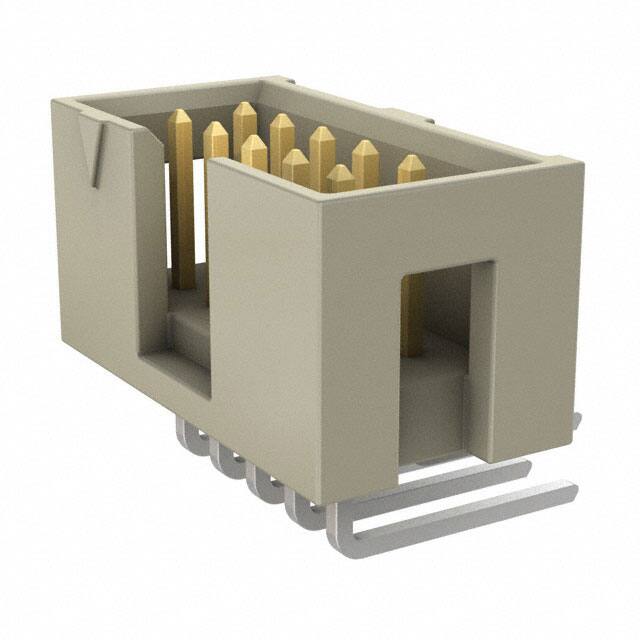

HTST-105-04-L-D-RA Samtec Inc.
