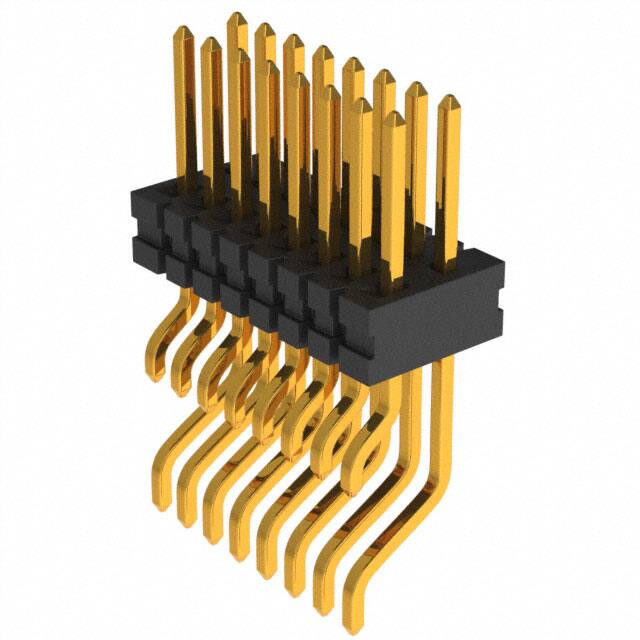

画像はあくまで参考です。
FTE-108-02-G-DH-TR
-
Samtec Inc.
-
Rectangular Connectors - Headers, Male Pins
- Conn Unshrouded Header HDR 16 POS 0.8mm Solder RA SMD T/R
Date Sheet
在庫數 0
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：3 Weeks
- Mount：Surface Mount
- Mounting Type：Surface Mount, Right Angle
- Contact Shape：Square
- Contact Finish Mating：Gold
- Contact Length-Mating：0.175 4.45mm
- Contact Materials：Phosphor Bronze
- Insulation Materials：Liquid Crystal Polymer (LCP)
- Operating Temperature：-55°C~125°C
- Packaging：Tape & Reel (TR)
- Series：FTE
- Published：2008
- JESD-609 Code：e4
- Pbfree Code：yes
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder
- ECCN Code：EAR99
- Connector Type：Header
- Number of Positions：16
- Number of Rows：2
- Gender：Male
- Additional Feature：TAPE & REEL PACKAGING
- HTS Code：8536.69.40.40
- Fastening Type：Push-Pull
- Contact Type：Male Pin
- Current Rating (Amps)：2.7A per Contact
- Total Number of Contacts：16
- Terminal Pitch：0.7874mm
- Insulation Height：0.120 3.05mm
- Style：Board to Board
- Number of Positions Loaded：All
- Pitch - Mating：0.031 0.80mm
- Insulation Color：Black
- Number of Conductors：ONE
- Reference Standard：UL
- Reliability：COMMERCIAL
- Row Spacing - Mating：0.047 (1.20mm)
- Shrouding：Unshrouded
- Number Of PCB Rows：2
- PCB Contact Pattern：RECTANGULAR
- Body Depth：0.055 inch
- Mating Contact Pitch：0.031 inch
- Withdrawl Force-Min：4.448 N
- Plating Thickness：10μin
- Contact Finish Thickness - Mating：10.0μin 0.25μm
- Material Flammability Rating：UL94 V-0
- REACH SVHC：No SVHC
- RoHS Status：ROHS3 Compliant
