FTSH-134-02-F-DV-TR

Samtec Inc.
Rectangular Connectors - Headers, Male Pins
Conn Unshrouded Header HDR 68 POS 1.27mm Solder ST SMD T/R
Date Sheet

在庫數 0

小計金額 $0.00000

仕様よくある質問

Factory Lead Time：3 Weeks
Mounting Type：Surface Mount
Contact Shape：Square
Contact Finish Mating：Gold
Contact Length-Mating：0.075 1.90mm
Contact Materials：Phosphor Bronze
Insulation Materials：Liquid Crystal Polymer (LCP)
Operating Temperature：-55°C~125°C
Packaging：Tape & Reel (TR)
Series：FTSH
Published：2015
JESD-609 Code：e3
Pbfree Code：yes
Part Status：Active
Termination：Solder
ECCN Code：EAR99
Connector Type：Header, Cuttable
Number of Positions：68
Number of Rows：2
Gender：Male
Additional Feature：TAPE AND REEL
HTS Code：8536.69.40.40
Fastening Type：Push-Pull
MIL Conformance：NO
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Male Pin
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：3.4A per Contact
Total Number of Contacts：68
Insulation Height：0.099 2.51mm
Style：Board to Board or Cable
Number of Positions Loaded：All
Pitch - Mating：0.050 1.27mm
Insulation Color：Black
Number of Conductors：ONE
Reference Standard：UL
Reliability：COMMERCIAL
Body Length or Diameter：1.7 inch
Row Spacing - Mating：0.050 (1.27mm)
Shrouding：Unshrouded
Number Of PCB Rows：2
Contact Finish - Post：Tin
PCB Contact Pattern：RECTANGULAR
Body Breadth：0.135 inch
Body Depth：0.115 inch
Insulation Resistance：5000000000Ohm
Mating Contact Pitch：0.05 inch
Dielectric Withstanding Voltage：1000VAC V
PCB Contact Row Spacing：4.064 mm
Plating Thickness：FLASH inch
Contact Finish Thickness - Mating：3.00μin 0.076μm
Material Flammability Rating：UL94 V-0
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free

在庫數 0

小計金額 $0.00000

類似スペック製品

FTSH-134-02-F-DV-TR Samtec Inc.
見積かごへ在庫數 0

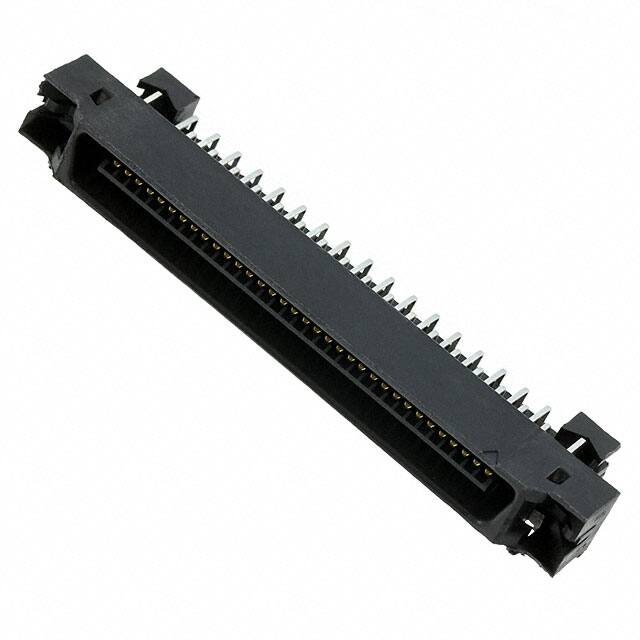

FX2B-68PA-1.27DSA(71) Hirose Electric Co Ltd
