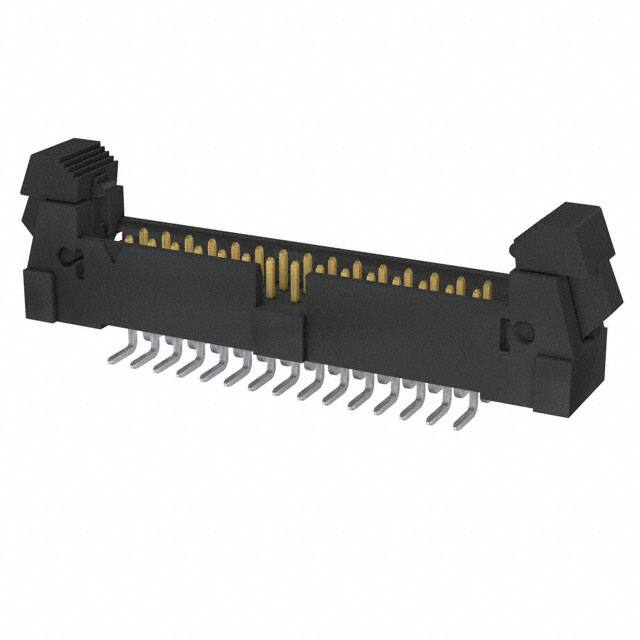

画像はあくまで参考です。
EHT-115-01-SM-D-SM-P
-
Samtec Inc.
-
Rectangular Connectors - Headers, Male Pins
- Conn Ejector Header HDR 30 POS 2mm Solder ST SMD
Date Sheet
在庫數 0
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：3 Weeks
- Mounting Type：Surface Mount
- Contact Shape：Square
- Mounting Option：LATCH & EJECT
- Contact Finish Mating：Gold
- Contact Length-Mating：0.120 3.05mm
- Contact Materials：Phosphor Bronze
- Insulation Materials：Liquid Crystal Polymer (LCP)
- Operating Temperature：-55°C~125°C
- Packaging：Tube
- Series：EHT
- Published：2016
- JESD-609 Code：e3
- Pbfree Code：yes
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder
- Connector Type：Header
- Number of Positions：30
- Number of Rows：2
- Additional Feature：LATCHED
- Fastening Type：Latch Lock/Eject Hooks
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Contact Type：Male Pin
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Current Rating (Amps)：3A
- Insulation Height：0.370 9.40mm
- Style：Board to Cable/Wire
- Number of Positions Loaded：All
- Pitch - Mating：0.079 inch
- Insulation Color：Black
- Military Standard：NO
- Number of Conductors：ONE
- Reference Standard：UL
- Reliability：COMMERCIAL
- Row Spacing - Mating：0.079 (2.00mm)
- Shrouding：Shrouded - 4 Wall
- Number of Contacts：30
- Contact Finish - Post：Tin
- PCB Contact Pattern：RECTANGULAR
- Body Breadth：0.3 inch
- UL Flammability Code：UL94 V-0
- Body Depth：0.375 inch
- Row Spacing：5.334 mm
- Polarization Key：POLARIZED HOUSING
- Features：Keying Slot, Pick and Place
- Contact Finish Thickness - Mating：30.0μin 0.76μm
- RoHS Status：ROHS3 Compliant
