FTE-163-01-G-DV

Samtec Inc.
Rectangular Connectors - Headers, Male Pins
SAMTEC FTE-163-01-G-DV Board-To-Board Connector, FTE Series, 126 Contacts, Header, 0.8 mm, Solder, 2 Rows
Date Sheet

在庫數 45

1+： $20.12863
10+： $18.98927
100+： $17.91441
500+： $16.90038
1000+： $15.94376

小計金額 $20.12863

仕様よくある質問

Mount：Surface Mount
Mounting Type：Surface Mount
Contact Shape：Square
Housing Material：Plastic
Contact Finish Mating：Gold
Contact Length-Mating：0.075 1.90mm
Contact Materials：Phosphor Bronze
Insulation Materials：Liquid Crystal Polymer (LCP)
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：FTE
Published：2013
JESD-609 Code：e4
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder
Connector Type：Header
Number of Positions：126
Number of Rows：2
Gender：Male
Additional Feature：LOW PROFILE
Fastening Type：Push-Pull
MIL Conformance：NO
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Male Pin
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：2.7A per Contact
Total Number of Contacts：126
Terminal Pitch：0.8mm
Insulation Height：0.055 1.40mm
Style：Board to Board
Number of Positions Loaded：All
Pitch - Mating：0.031 0.80mm
Number of Conductors：ONE
Reference Standard：UL
Reliability：COMMERCIAL
Row Spacing - Mating：0.047 (1.20mm)
Shrouding：Unshrouded
Number Of PCB Rows：2
Lead Pitch：800μm
PCB Contact Pattern：RECTANGULAR
Mating Information：MULTIPLE MATING PARTS AVAILABLE
Housing Color：Black
Height：1.38mm
Length：50.4mm
Width：3.05mm
Plating Thickness：10μin
Contact Finish Thickness - Mating：10.0μin 0.25μm
Contact Finish Thickness - Post：3.00μin 0.076μm
Material Flammability Rating：UL94 V-0
REACH SVHC：No SVHC
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free

在庫數 45

1+： $20.12863
10+： $18.98927
100+： $17.91441
500+： $16.90038
1000+： $15.94376

小計金額 $20.12863

類似スペック製品

FTE-163-01-G-DV Samtec Inc.
最低価格$20.1286269 在庫數 45
FTE-150-01-G-DV Samtec Inc.
最低価格$13.869995 在庫數 252

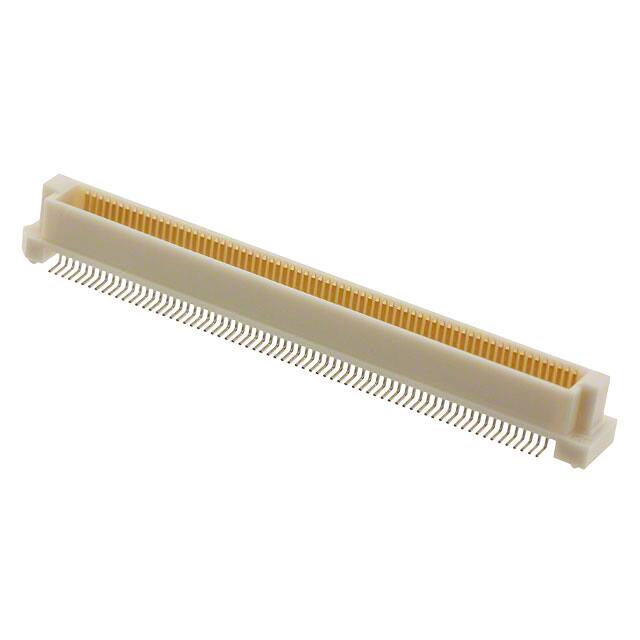

FX8C-140P-SV4(91) Hirose Electric Co Ltd
