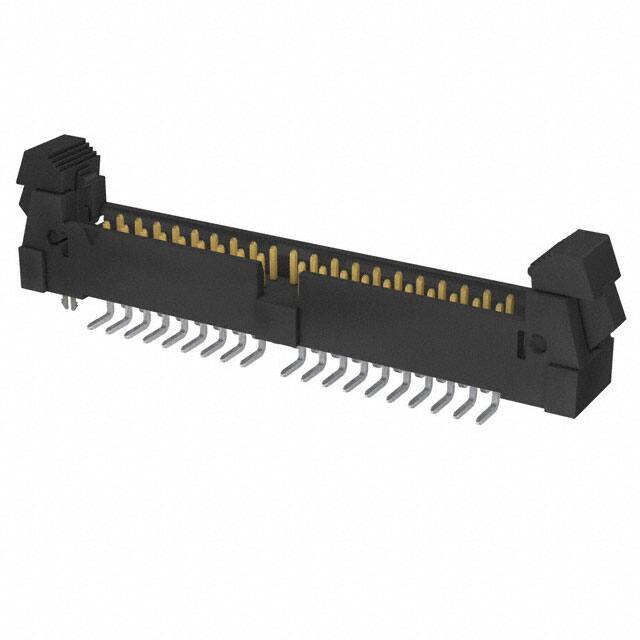

画像はあくまで参考です。
EHT-120-01-S-D-SM-LC-19
-
Samtec Inc.
-
Rectangular Connectors - Headers, Male Pins
- CONN HEADER SMD 40POS 2MM
Date Sheet
在庫數 0
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：3 Weeks
- Mounting Type：Surface Mount
- Contact Shape：Square
- Mounting Option 1：LATCH & EJECT
- Board Mounting Option：LOCKPIN
- Mounting Option 2：LOCKING
- Contact Finish Mating：Gold
- Contact Length-Mating：0.120 3.05mm
- Contact Materials：Phosphor Bronze
- Insulation Materials：Liquid Crystal Polymer (LCP)
- Operating Temperature：-55°C~125°C
- Packaging：Tube
- Series：EHT
- JESD-609 Code：e3
- Pbfree Code：yes
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder
- ECCN Code：EAR99
- Connector Type：Header
- Number of Positions：40
- Number of Rows：2
- Additional Feature：LOCKING CLIP
- Fastening Type：Latch Lock/Eject Hooks
- Contact Type：Male Pin
- Current Rating (Amps)：3A
- Total Number of Contacts：40
- Insulation Height：0.370 9.40mm
- Style：Board to Cable/Wire
- Number of Positions Loaded：39
- Pitch - Mating：0.079 2.00mm
- Insulation Color：Black
- Number of Conductors：ONE
- Reference Standard：UL
- Reliability：COMMERCIAL
- Row Spacing - Mating：0.079 (2.00mm)
- Shrouding：Shrouded - 4 Wall
- Number Of PCB Rows：2
- Contact Finish - Post：Tin
- PCB Contact Pattern：RECTANGULAR
- Body Breadth：0.3 inch
- Body Depth：0.375 inch
- Mating Contact Pitch：0.079 inch
- Polarization Key：CTR W/GUIDE SLOTS
- PCB Contact Row Spacing：5.3086 mm
- Features：Board Lock, Keying Slot
- Plating Thickness：30μin
- Contact Finish Thickness - Mating：30.0μin 0.76μm
- Material Flammability Rating：UL94 V-0
- RoHS Status：ROHS3 Compliant
