MOLC-140-11-S-Q-LC

Samtec Inc.
Rectangular Connectors - Headers, Male Pins
Conn Shrouded Header HDR 160 POS 1.27mm Solder ST Thru-Hole Tube
Date Sheet

在庫數 5

1+： $31.30749
10+： $29.53536
100+： $27.86355
500+： $26.28637
1000+： $24.79846

小計金額 $31.30749

仕様よくある質問

Factory Lead Time：3 Weeks
Mount：Through Hole
Mounting Type：Through Hole
Contact Shape：Square
Contact Finish Mating：Gold
Contact Length-Mating：0.144 3.66mm
Contact Materials：Phosphor Bronze
Insulation Materials：Liquid Crystal Polymer (LCP)
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：FOURRAY™ MOLC
Published：2013
JESD-609 Code：e3
Pbfree Code：yes
Part Status：Active
Termination：Solder
Connector Type：Header
Number of Positions：160
Number of Rows：4
Gender：Male
Additional Feature：LOCKING CLIP
Fastening Type：Push-Pull
MIL Conformance：NO
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Male Pin
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：2.6A per Contact
Orientation：Straight
Terminal Pitch：1.27mm
Insulation Height：0.289 7.34mm
Style：Board to Board
Number of Positions Loaded：All
Pitch - Mating：0.050 1.27mm
Insulation Color：Black
Number of Conductors：ONE
Reference Standard：UL
Reliability：COMMERCIAL
Body Length or Diameter：2.1 inch
Row Spacing - Mating：0.050 (1.27mm)
Contact Length - Post：0.075 1.91mm
Shrouding：Shrouded - 4 Wall
Number Of PCB Rows：4
Contact Finish - Post：Tin
PCB Contact Pattern：RECTANGULAR
Body Breadth：0.32 inch
Body Depth：0.289 inch
Insulation Resistance：5000000000Ohm
Mating Contact Pitch：0.05 inch
Max Current Rating：1A
Dielectric Withstanding Voltage：600VAC V
PCB Contact Row Spacing：1.27 mm
Features：Board Lock
Plating Thickness：30μin
Contact Finish Thickness - Mating：30.0μin 0.76μm
Length - Termination：0.075 inch
Stack Height (Mating)：7.75mm
Material Flammability Rating：UL94 V-0
Radiation Hardening：No
RoHS Status：ROHS3 Compliant

在庫數 5

1+： $31.30749
10+： $29.53536
100+： $27.86355
500+： $26.28637
1000+： $24.79846

小計金額 $31.30749

類似スペック製品

MOLC-140-11-S-Q-LC Samtec Inc.
最低価格$31.3074855 在庫數 5

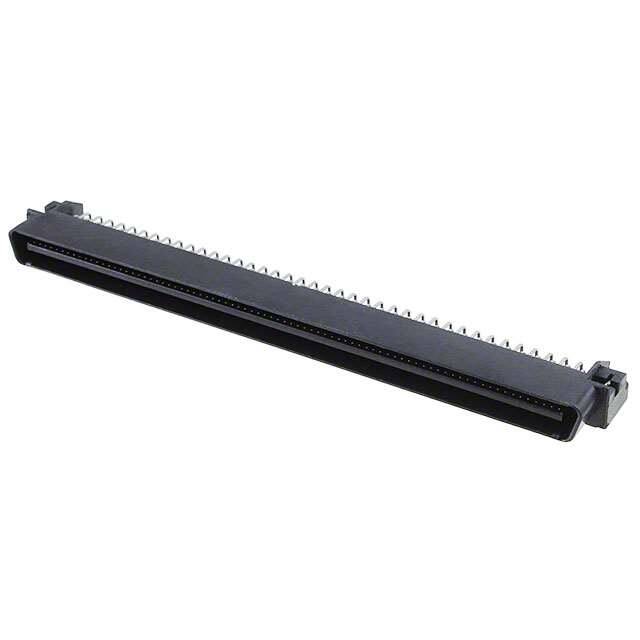

1-1734099-6 TE Connectivity AMP Connectors
見積かごへ在庫數 21
MOLC-135-01-S-Q-LC Samtec Inc.
最低価格$25.9245567 在庫數 18

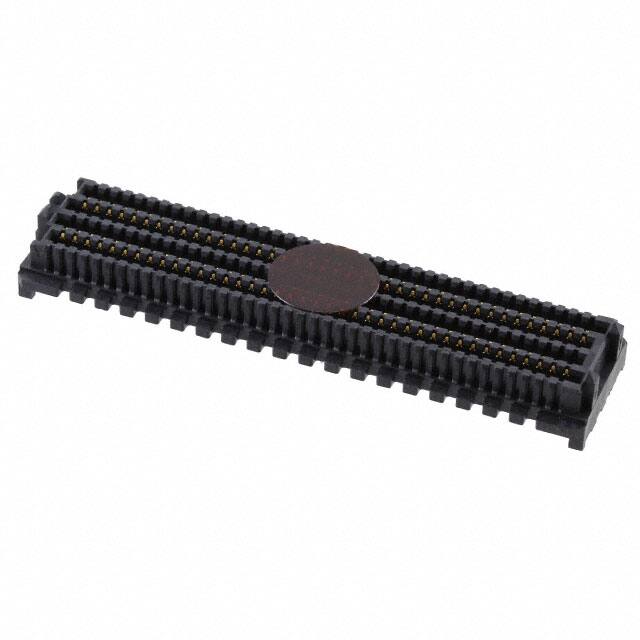

ASP-127797-01 Samtec Inc.
