Home Connectors, Interconnects Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) 5767017-4
画像はあくまで参考です。

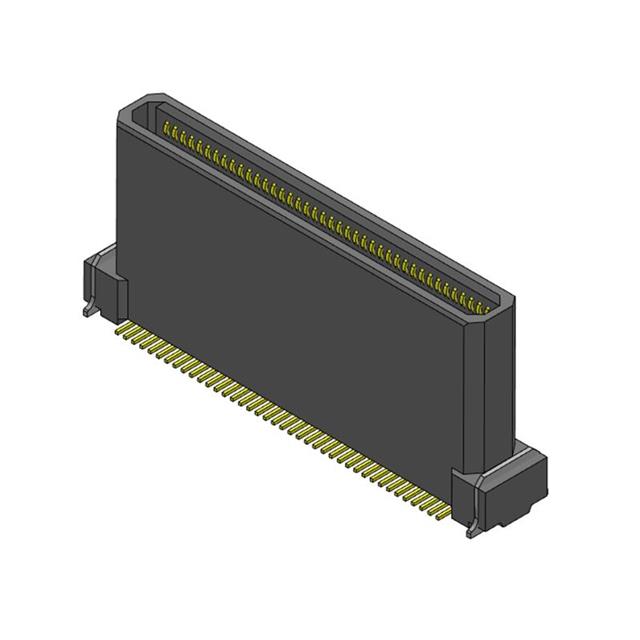

5767017-4
-
TE Connectivity
-
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- Conn High Speed Fine Pitch Connector PL 152 POS 2.54mm/0.64mm Solder ST Thru-Hole/SMD Tube
Date Sheet
在庫數 0
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：26 Weeks
- Contact Plating：Gold
- Housing Material：Liquid Crystal Polymer (LCP)
- Body Orientation：Straight
- Termination Method：Solder
- Base/Housing Material：LCP (Liquid Crystal Polymer)
- Contact Materials：Copper Alloy
- Voltage Rating Max：30VAC
- Number of Contact Rows：2
- Product Depth (mm)：8.13(mm)
- Contact Resistance Max：10(mohm)
- Operating Temp Range：-55C to 125C
- Pitch (mm)：2.54/0.64(mm)
- Factory Pack QuantityFactory Pack Quantity：8
- Manufacturer：TE Connectivity
- Brand：TE Connectivity / AMP
- RoHS：Details
- Contact Finish Mating：NOT SPECIFIED
- Rohs Code：Yes
- Manufacturer Part Number：5767017-4
- Part Life Cycle Code：Active
- Ihs Manufacturer：TE CONNECTIVITY LTD
- Risk Rank：2.28
- Manufacturer Series：5767017
- Operating Temperature：-55 to 125 °C
- Packaging：Box/Tube
- Series：MICTOR
- Connector Type：BOARD STACKING CONNECTOR
- Number of Positions：152 Position
- Gender：Plug
- Subcategory：Board to Board & Mezzanine Connectors
- Pitch：2.5400, 0.6400 mm
- Reach Compliance Code：compliant
- Number of Contacts：4POWER/152SIGNAL(POS)
- Housing Color：Black
- Brand Name：AMP
- Product Type：Board to Board & Mezzanine Connectors
- Current Rating (Max)：11.5/CONTACT(A)
- Product：Plugs
- Product Category：Board to Board & Mezzanine Connectors
- Product Length：63.5 mm
- Product Length (mm)：63.5(mm)
- Product Height (mm)：22.66(mm)
