34151

TE Connectivity
Terminals - Ring Connectors

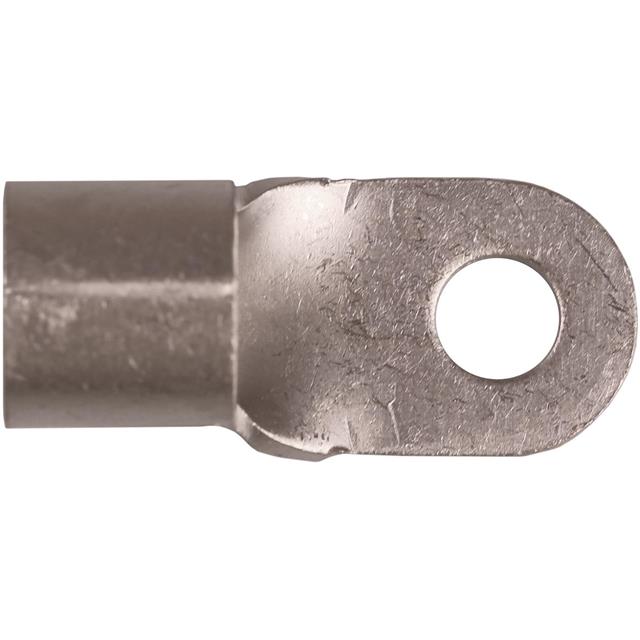

Ring Tongue Terminal 16-22AWG 27.69mm 11.91mm Tin Loose Piece
Date Sheet

在庫數 0

小計金額 $0.00000

仕様よくある質問

Factory Lead Time：7 Weeks
Contact Plating：Tin
Material：Copper
Body Material：Copper
Mounting：Surface Mount
Maximum Operating Supply Voltage：5.5 V
Number of I/O Lines：4 Bit
Number of Words：16 kWords
Timing Type：Asynchronous
Minimum Operating Supply Voltage：4.5 V
Typical Operating Supply Voltage：5.0000 V
Supplier Package：SOJ
Wire Size：22 to 16, 22 AWG
Rad Hardened：No
Product Depth (mm)：11.91(mm)
RoHS-compliant：Yes
Manufacturer part #：34151
AWG (min.)：22
max. cross section：1.60mm²
Content：1pc(s)
AWG max.：16
Min. cross section：0.205mm²
Cross-section range：0.205 - 1.60 mm²
Hole Ø：8.33mm
Support sleeve：No
Insulation type：Partially insulated
Factory colour：Red
Contact Materials：Copper
Insulation Materials：Vinyl
Voltage, Rating：600 VAC
Maximum Operating Temperature：+ 90 C
Unit Weight：0.032734 oz
Factory Pack QuantityFactory Pack Quantity：1000
Mounting Styles：Screw
Wire Gauge Max：16 AWG
Manufacturer：TE Connectivity
Brand：TE Connectivity
Tradename：PLASTI-GRIP
RoHS：Details
Insulator Material：PVC (Polyvinylchloride)
Rohs Code：Yes
Manufacturer Part Number：34151
Part Life Cycle Code：Active
Ihs Manufacturer：TE CONNECTIVITY LTD
Risk Rank：1.08
Usage Level：Commercial grade
Operating Temperature：0 to 70 °C
Packaging：Bulk
Series：PLASTI-GRIP
ECCN Code：EAR99
Type：Ring Tongue Terminal
Color：Red
Gender：Female
HTS Code：8536.90.40.00
Subcategory：Terminals
Reach Compliance Code：compliant
Pin Count：24
Termination Style：Crimp
Brand Name：AMP
Wire Gauge：16-22(AWG)
Plating：Tin
Number of Ports：1
Body Plating：Tin
Terminal and Terminal Block Type：RING TERMINAL
Insulation：Vinyl
Address Bus Width：14 Bit
Product Type：Terminals
Density：64 Kb
Screening Level：Commercial
Wire Cross Section：1.65 mm2
Stud/Tab Size：7.94 mm
Terminal Gender：FEMALE
Stud Size：7.93 mm
Overall Length：27.69mm
Product：Screw Terminals
Product Category：Terminals
Product Length：27.69 mm
Product Length (mm)：27.69(mm)
Thickness：0.79mm
