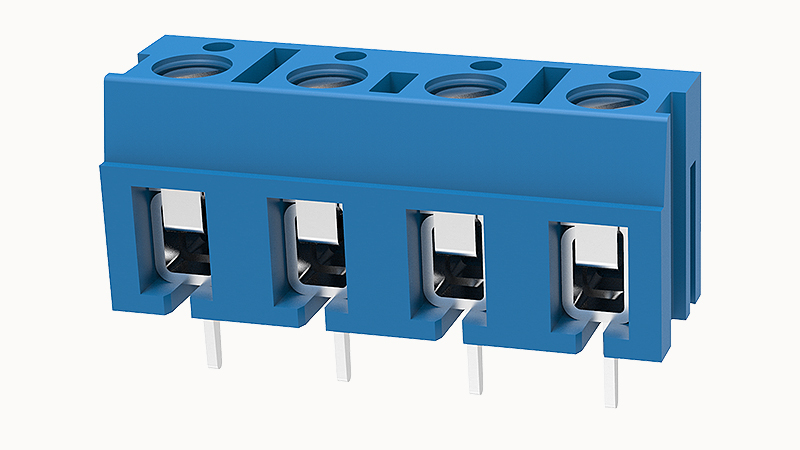

画像はあくまで参考です。
DG305-7.5-04P
-
DEGSON
-
Terminal Blocks - Wire to Board
- PCB terminal blocks,Rated current:20A,Rated voltage （III/2）450V,Cross section:2.5mm²,pitch:7.5mm,connector method:screw connector with wire protection,Color:blue,Contact surface :Tin
Date Sheet
在庫數 0
小計金額 $0.00000
仕様 よくある質問
- Conductor cross section solid：1.0~2.5mm²
- Conductor cross section flexible：1.0~2.5mm²
- AWG：22~14AWG
- Strip length：6mm
- Rated voltage (B)：300V
- Rated voltage (D)：300V
- Rated current (B)：15A
- Rated current (D)：10A
- Rated voltage(III/2)：450V
- Rated power frequency voltage(1min)：2.5KV
- Connection direction：0°
- Type of installation：PCB welding
- Pin arrangement：Single row in a straight line
- Screwdriver：Slotted screwdriver
- Number of potentials：4
- Pluggable or not：no
- Environmental items：Compliant with REACH/RoHS
- Contact Materials：Copper alloy
- Contact point metal surface：tin-plated
- Insulation Materials：PBT
- Insulating material group：Ⅲa
- Test Specification：UL1059/IEC60998
- Ambient temperature (operation)：-30℃~120℃(depending on derating curve)
- Coding strip：/
- Bridge：/
- Marking strip：/
- Operating tool：/
- Packing unit：#N/A
- Products weight (without packaging)：#N/A
- Number of rows：1
- Pitch：7.5mm
- Rated current：20A
- screw thread：M2.5
- Connection method：Screw connection with wire protection
- Rated voltage：450V
- Process：Wave soldering/manual soldering
- Flammability rating：UL94V-0
