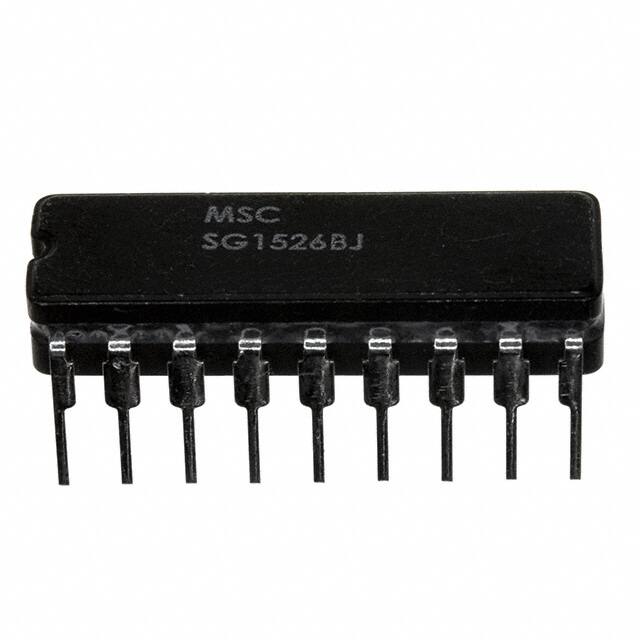

SG1526BJ

在庫數 1500

小計金額 $0.00000

仕様よくある質問

Lifecycle Status：IN PRODUCTION (Last Updated: 2 weeks ago)
Mount：Through Hole
Mounting Type：Through Hole
Package / Case：18-CDIP (0.300, 7.62mm)
Number of Pins：18
Operating Temperature：-55°C~125°C TJ
Published：1997
JESD-609 Code：e0
Pbfree Code：no
Part Status：Discontinued
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Number of Terminations：18
ECCN Code：EAR99
Terminal Finish：Tin/Lead (Sn/Pb)
Terminal Position：DUAL
Frequency：500kHz
Base Part Number：SG*526
Function：Step-Down, Step-Up/Step-Down
Number of Outputs：2
Output Type：Transistor Driver
Input Voltage-Nom：15V
Analog IC - Other Type：SWITCHING CONTROLLER
Output Configuration：Positive
Output Current：100A
Voltage - Supply (Vcc/Vdd)：8V~35V
Quiescent Current：18mA
Control Features：Dead Time Control, Enable, Frequency Control, Reset, Soft Start
Input Voltage (Min)：8V
Topology：Buck, Flyback
Control Mode：VOLTAGE-MODE
Frequency - Switching：1Hz~500kHz
Input Voltage (Max)：35V
Control Technique：PULSE WIDTH MODULATION
Rise Time：300ns
Synchronous Rectifier：Yes
Fall Time (Typ)：100 ns
Switcher Configuration：PUSH-PULL
Duty Cycle (Max)：49%
Clock Sync：No
Output Phases：1
Height Seated (Max)：5.08mm
RoHS Status：Non-RoHS Compliant
Lead Free：Exempt
