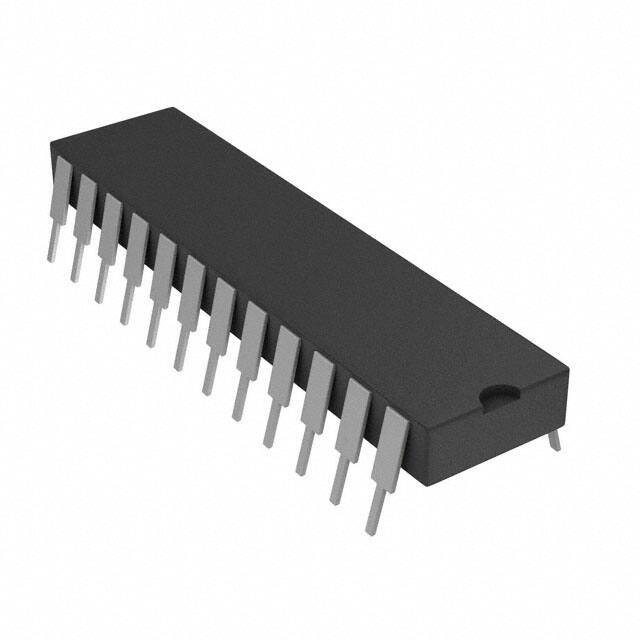

画像はあくまで参考です。
CD4067BE
-
Texas Instruments
-
Interface - Analog Switches, Multiplexers, Demultiplexers
- 24-DIP (0.600, 15.24mm)
- TEXAS INSTRUMENTS CD4067BE IC, SWITCH, MUX/DEMUX BUS
Date Sheet
在庫數 1300
小計金額 $0.00000
仕様 よくある質問
- Contact Plating：Gold
- Mount：Through Hole
- Mounting Type：Through Hole
- Package / Case：24-DIP (0.600, 15.24mm)
- Number of Pins：24
- Weight：3.735305g
- Turn Off Delay Time：440 ns
- Operating Temperature：-55°C~125°C TA
- Packaging：Tube
- JESD-609 Code：e4
- Pbfree Code：yes
- Part Status：Obsolete
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Number of Terminations：24
- ECCN Code：EAR99
- Resistance：240Ohm
- Max Power Dissipation：500mW
- Terminal Position：DUAL
- Number of Functions：1
- Supply Voltage：5V
- Terminal Pitch：2.54mm
- Base Part Number：CD4067
- Pin Count：24
- Polarity：Non-Inverting
- Number of Channels：16
- Number of Circuits：1
- Max Supply Voltage：18V
- Min Supply Voltage：3V
- Operating Supply Current：80nA
- Nominal Supply Current：5μA
- Power Dissipation：500mW
- Number of Bits：16
- Propagation Delay：60 ns
- Quiescent Current：80nA
- Turn On Delay Time：650 ns
- Logic Function：Demultiplexer, Multiplexer, Mux
- Max Input Voltage：15V
- Supply Type：Single
- Supply Current-Max (Isup)：0.6mA
- On-State Resistance (Max)：240Ohm
- Input Capacitance：5pF
- Multiplexer/Demultiplexer Circuit：16:1
- Current - Leakage (IS(off)) (Max)：100nA
- Channel Capacitance (CS(off), CD(off))：0.2pF 55pF
- On-state Resistance Match-Nom：15Ohm
- Channel-to-Channel Matching (ΔRon)：5 Ω
- Voltage - Supply, Single (V+)：3V~18V
- Signal Current-Max：0.025A
- Height Seated (Max)：5.08mm
- Width：15.24mm
- REACH SVHC：No SVHC
- Radiation Hardening：No
- RoHS Status：ROHS3 Compliant
- Lead Free：Lead Free
