Home Integrated Circuits (ICs) Interface - Analog Switches, Multiplexers, Demultiplexers ST3DV520QTR

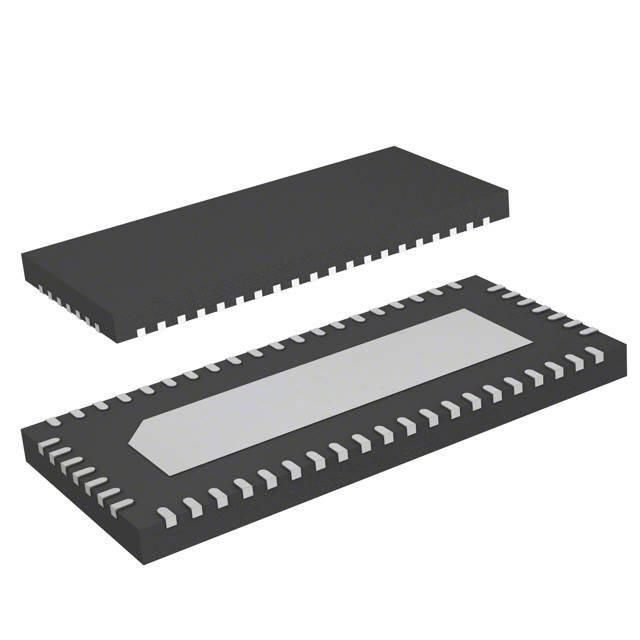

画像はあくまで参考です。
ST3DV520QTR
-
STMicroelectronics
-
Interface - Analog Switches, Multiplexers, Demultiplexers
- 56-WFQFN Exposed Pad
- Multiplexer Switch ICs Hi bandwidth analog switch 16-8 bit MUX
Date Sheet
在庫數 0
小計金額 $0.00000
仕様 よくある質問
- Mount：Surface Mount
- Mounting Type：Surface Mount
- Package / Case：56-WFQFN Exposed Pad
- Number of Pins：56
- Current - Supply (Nom)：150μA
- Turn Off Delay Time：8.5 ns
- Operating Temperature：-55°C~125°C TA
- Packaging：Tape & Reel (TR)
- JESD-609 Code：e4
- Pbfree Code：yes
- Part Status：Obsolete
- Moisture Sensitivity Level (MSL)：3 (168 Hours)
- Number of Terminations：56
- Resistance：5.5Ohm
- Terminal Finish：Nickel/Palladium/Gold (Ni/Pd/Au)
- Max Power Dissipation：500mW
- Voltage - Supply：3.3V
- Terminal Position：QUAD
- Terminal Form：NO LEAD
- Peak Reflow Temperature (Cel)：260
- Number of Functions：4
- Terminal Pitch：0.5mm
- Time@Peak Reflow Temperature-Max (s)：NOT SPECIFIED
- Base Part Number：ST3DV
- Number of Outputs：16
- Qualification Status：Not Qualified
- Number of Channels：8
- Number of Circuits：4
- Analog IC - Other Type：VIDEO MULTIPLEXER
- Power Dissipation：500mW
- Propagation Delay：250 ps
- Turn On Delay Time：9 ns
- Current - Supply：150μA
- Logic Function：Demultiplexer, Multiplexer
- Supply Current-Max (Isup)：0.5mA
- On-State Resistance (Max)：7.5Ohm
- Multiplexer/Demultiplexer Circuit：2:1
- Current - Leakage (IS(off)) (Max)：5μA
- Channel Capacitance (CS(off), CD(off))：6pF
- Switch Circuit：SPDT
- Switch Time (Ton, Toff) (Max)：9ns, 8.5ns
- Channel-to-Channel Matching (ΔRon)：500m Ω
- Voltage - Supply, Single (V+)：3V~3.6V
- Voltage - Supply (Max)：3.6V
- Voltage - Supply (Min)：3V
- RoHS Status：ROHS3 Compliant
- Lead Free：Lead Free
