CLP-111-02-F-D-P-TR

Samtec Inc.
Rectangular Connectors - Headers, Receptacles, Female Sockets
Conn Socket Strip SKT 22 POS 1.27mm Solder ST SMD T/R
Date Sheet

在庫數 10

1+： $2.07934
10+： $1.96164
100+： $1.85061
500+： $1.74586
1000+： $1.64703

小計金額 $2.07934

仕様よくある質問

Factory Lead Time：3 Weeks
Mounting Type：Surface Mount
Contact Shape：Square
Contact Finish Mating：Gold
Contact Materials：Phosphor Bronze
Insulation Materials：Liquid Crystal Polymer (LCP)
Operating Temperature：-55°C~125°C
Packaging：Tape & Reel (TR)
Series：CLP
JESD-609 Code：e3
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder
ECCN Code：EAR99
Connector Type：Receptacle
Number of Positions：22
Number of Rows：2
Gender：Female
Additional Feature：E.L.P., LOW PROFILE, TIGER CLAW
HTS Code：8536.69.40.40
Fastening Type：Push-Pull
Voltage - Rated DC：340V
MIL Conformance：NO
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Female Socket
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：3.3A per Contact
Total Number of Contacts：22
Insulation Height：0.084 2.14mm
Style：Board to Board
Number of Positions Loaded：All
Pitch - Mating：0.050 1.27mm
Insulation Color：Black
Number of Conductors：ONE
Reference Standard：UL
Voltage - Rated AC：240V
Reliability：COMMERCIAL
Body Length or Diameter：0.567 inch
Row Spacing - Mating：0.050 (1.27mm)
Number Of PCB Rows：2
Contact Finish - Post：Tin
PCB Contact Pattern：RECTANGULAR
Body Depth：0.09 inch
Contact Resistance：10mOhm
Mating Contact Pitch：0.05 inch
PCB Contact Row Spacing：3.7338 mm
Durability：100 Cycles
Withdrawl Force-Min：.556 N
Features：Pick and Place
Plating Thickness：FLASH inch
Contact Finish Thickness - Mating：3.00μin 0.076μm
Material Flammability Rating：UL94 V-0
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free

在庫數 10

1+： $2.07934
10+： $1.96164
100+： $1.85061
500+： $1.74586
1000+： $1.64703

小計金額 $2.07934

類似スペック製品

CLP-111-02-F-D-P-TR Samtec Inc.
最低価格$2.0793429 在庫數 10

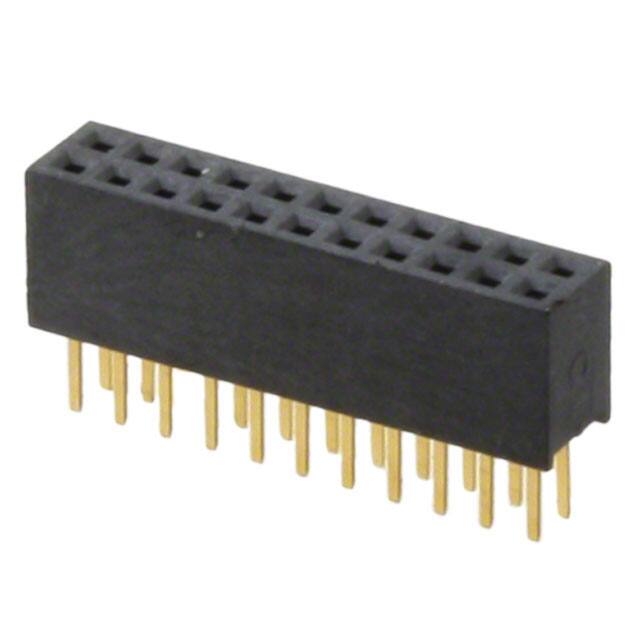

20021311-00022T4LF Amphenol ICC (FCI)
最低価格$1.987396 在庫數 1670

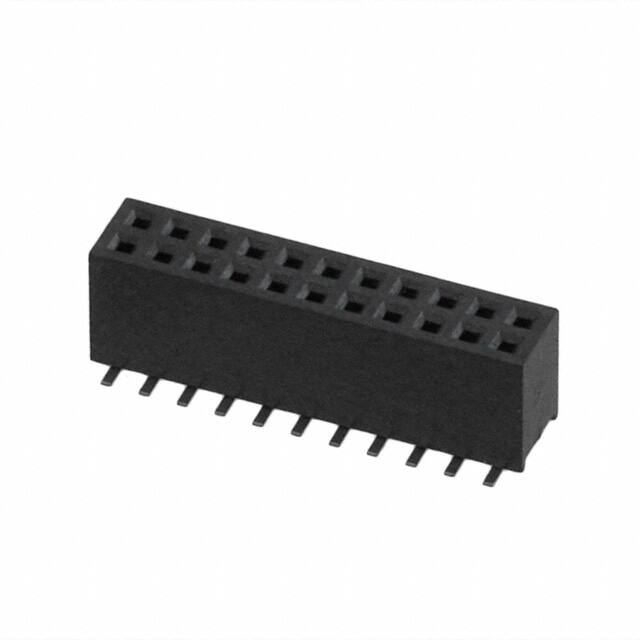

20021321-00022T4LF Amphenol ICC (FCI)
