Home Connectors, Interconnects Rectangular Connectors - Headers, Receptacles, Female Sockets CLP-117-02-F-D-P-TR

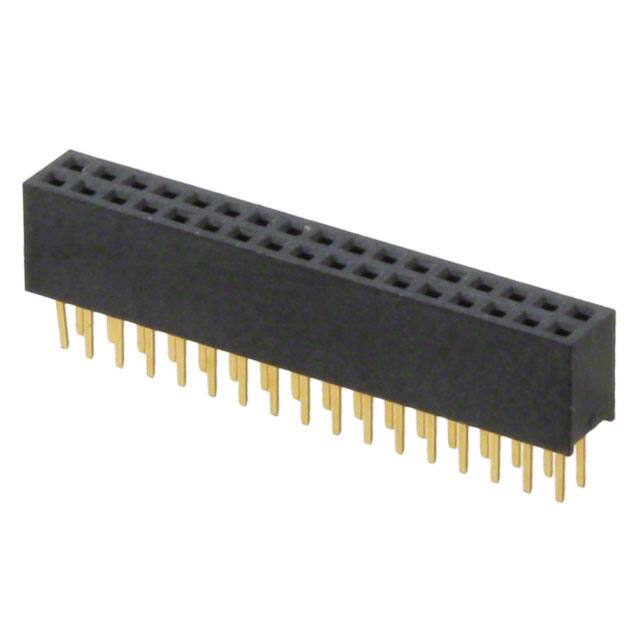

画像はあくまで参考です。
CLP-117-02-F-D-P-TR
-
Samtec Inc.
-
Rectangular Connectors - Headers, Receptacles, Female Sockets
- Conn Socket Strip SKT 34 POS 1.27mm Solder ST SMD T/R
Date Sheet
在庫數 5
- 1+： $2.14666
- 10+： $2.02515
- 100+： $1.91052
- 500+： $1.80238
- 1000+： $1.70035
小計金額 $2.14666
仕様 よくある質問
- Factory Lead Time：3 Weeks
- Mounting Type：Surface Mount
- Contact Shape：Square
- Mounting Option 1：LOCKING
- Contact Finish Mating：Gold
- Contact Materials：Phosphor Bronze
- Insulation Materials：Liquid Crystal Polymer (LCP)
- Operating Temperature：-55°C~125°C
- Packaging：Tape & Reel (TR)
- Series：CLP
- JESD-609 Code：e3
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder
- ECCN Code：EAR99
- Connector Type：Receptacle
- Number of Positions：34
- Number of Rows：2
- Gender：Female
- Additional Feature：E.L.P., LOW PROFILE, TIGER CLAW
- HTS Code：8536.69.40.40
- Fastening Type：Push-Pull
- Voltage - Rated DC：340V
- MIL Conformance：NO
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Contact Type：Female Socket
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Current Rating (Amps)：3.3A per Contact
- Total Number of Contacts：34
- Insulation Height：0.084 2.14mm
- Style：Board to Board
- Number of Positions Loaded：All
- Pitch - Mating：0.050 1.27mm
- Insulation Color：Black
- Number of Conductors：ONE
- Reference Standard：UL
- Voltage - Rated AC：240V
- Reliability：COMMERCIAL
- Body Length or Diameter：0.867 inch
- Row Spacing - Mating：0.050 (1.27mm)
- Number Of PCB Rows：2
- Contact Finish - Post：Tin
- PCB Contact Pattern：RECTANGULAR
- Body Depth：0.09 inch
- Mating Contact Pitch：0.05 inch
- Features：Pick and Place
- Plating Thickness：3μin
- Contact Finish Thickness - Mating：3.00μin 0.076μm
- Material Flammability Rating：UL94 V-0
- RoHS Status：ROHS3 Compliant
- Lead Free：Lead Free
在庫數 5
- 1+： $2.14666
- 10+： $2.02515
- 100+： $1.91052
- 500+： $1.80238
- 1000+： $1.70035
小計金額 $2.14666
