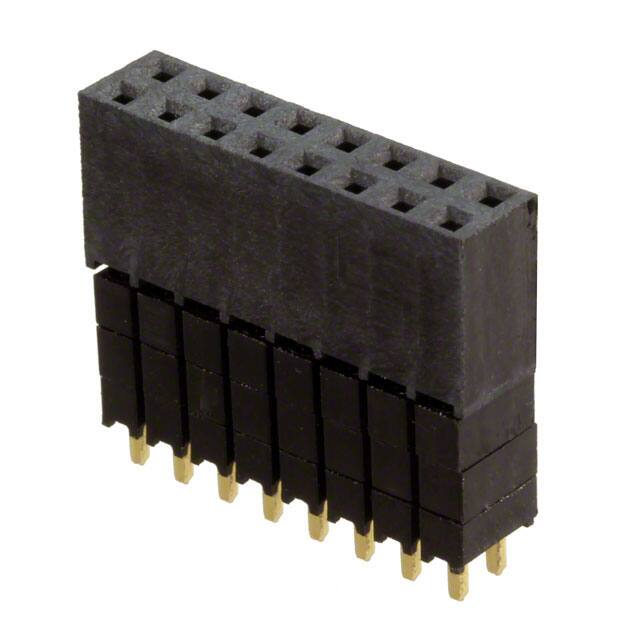

ESQ-108-58-G-D

Samtec Inc.
Rectangular Connectors - Headers, Receptacles, Female Sockets
CONN SOCKET 16POS 0.1 GOLD PCB
Date Sheet

在庫數 34

1+： $3.55342
10+： $3.35229
100+： $3.16253
500+： $2.98352
1000+： $2.81464

小計金額 $3.55342

仕様よくある質問

Factory Lead Time：3 Weeks
Mount：Through Hole
Mounting Type：Through Hole
Contact Shape：Square
Contact Finish Mating：Gold
Contact Materials：Phosphor Bronze
Insulation Materials：Liquid Crystal Polymer (LCP)
Voltage Rated：550VAC
Operating Temperature：-55°C~125°C
Packaging：Tube
Series：ESQ
Published：2000
JESD-609 Code：e4
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder
ECCN Code：EAR99
Connector Type：Elevated Socket
Number of Positions：16
Number of Rows：2
Gender：Receptacle
Additional Feature：LOW INSERTION FORCE
HTS Code：8536.69.40.40
Fastening Type：Push-Pull
MIL Conformance：NO
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Forked
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：5.7A per Contact
Insulation Height：0.535 13.60mm
Style：Board to Board
Number of Positions Loaded：All
Pitch - Mating：0.100 2.54mm
Insulation Color：Black
Number of Conductors：ONE
Reference Standard：UL, CSA
Reliability：COMMERCIAL
Row Spacing - Mating：0.100 (2.54mm)
Contact Length - Post：0.380 9.65mm
Number Of PCB Rows：2
PCB Contact Pattern：RECTANGULAR
Mating Information：MULTIPLE MATING PARTS AVAILABLE
Body Breadth：0.195 inch
Body Depth：0.635 inch
Contact Resistance：10mOhm
Mating Contact Pitch：0.1 inch
Polarization Key：POLARIZED HOUSING
Contact Finish Thickness - Mating：20.0μin 0.51μm
Contact Finish Thickness - Post：3.00μin 0.076μm
Length - Termination：0.09 inch
Material Flammability Rating：UL94 V-0
Radiation Hardening：No
RoHS Status：ROHS3 Compliant

在庫數 34

1+： $3.55342
10+： $3.35229
100+： $3.16253
500+： $2.98352
1000+： $2.81464

小計金額 $3.55342

類似スペック製品

ESQ-108-58-G-D Samtec Inc.
最低価格$3.5534223 在庫數 34

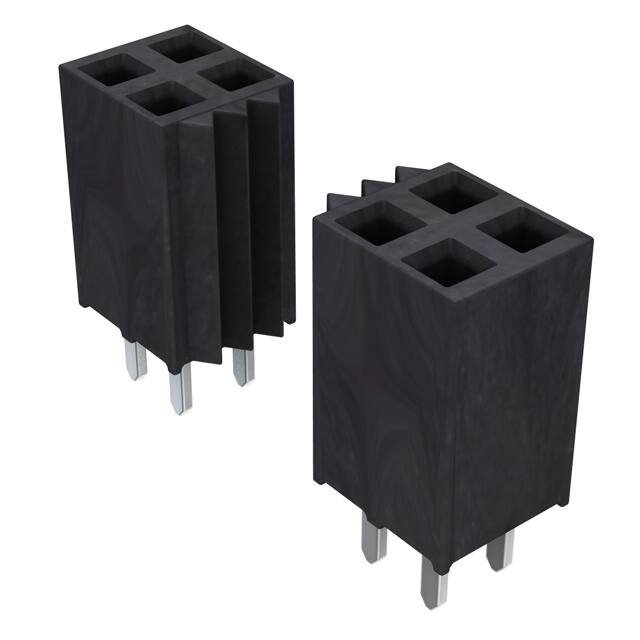

SSW-108-01-S-D Samtec Inc.
最低価格$2.389797 在庫數 1731

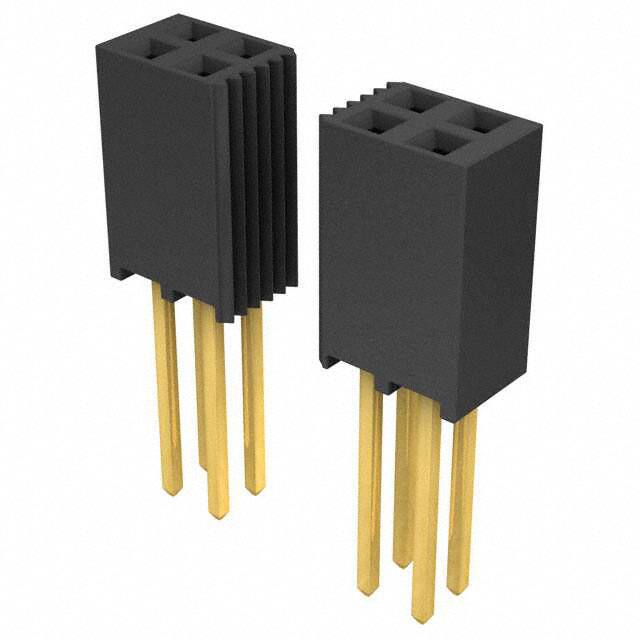

SSQ-108-03-G-D Samtec Inc.
