Home Connectors, Interconnects Rectangular Connectors - Headers, Receptacles, Female Sockets CLT-129-02-G-D-P-TR

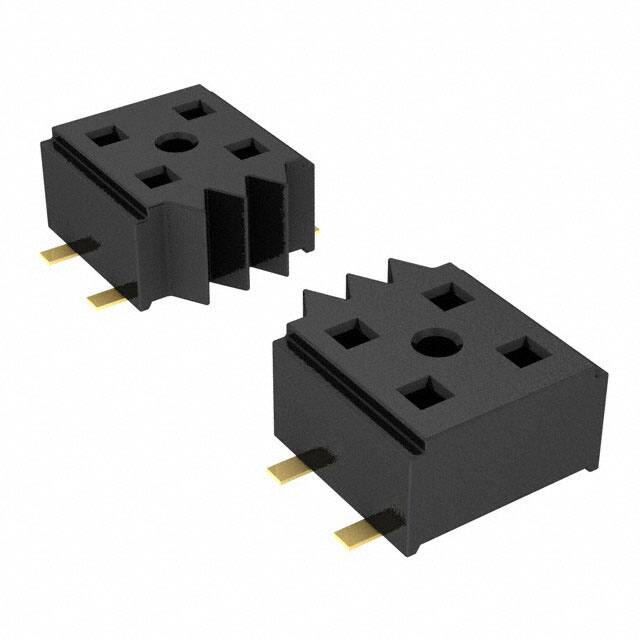

画像はあくまで参考です。
CLT-129-02-G-D-P-TR
-
Samtec Inc.
-
Rectangular Connectors - Headers, Receptacles, Female Sockets
- CONN RCPT 58POS 0.079 GOLD SMD
Date Sheet
在庫數 0
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：3 Weeks
- Mounting Type：Surface Mount
- Contact Shape：Square
- Contact Finish Mating：Gold
- Contact Materials：Phosphor Bronze
- Insulation Materials：Liquid Crystal Polymer (LCP)
- Operating Temperature：-55°C~125°C
- Packaging：Tape & Reel (TR)
- Series：CLT
- JESD-609 Code：e4
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder
- ECCN Code：EAR99
- Connector Type：Receptacle
- Number of Positions：58
- Number of Rows：2
- Additional Feature：PICK&PLACE PAD, TAPE&REEL PKG
- HTS Code：8536.69.40.40
- Fastening Type：Push-Pull
- Contact Type：Female Socket
- Current Rating (Amps)：4.1A per Contact
- Total Number of Contacts：58
- Insulation Height：0.083 2.10mm
- Style：Board to Board
- Number of Positions Loaded：All
- Pitch - Mating：0.079 2.00mm
- Insulation Color：Black
- Number of Conductors：ONE
- Reference Standard：UL
- Reliability：COMMERCIAL
- Row Spacing - Mating：0.079 (2.00mm)
- Number Of PCB Rows：2
- PCB Contact Pattern：RECTANGULAR
- Body Breadth：0.157 inch
- Body Depth：0.084 inch
- Contact Resistance：10mOhm
- Mating Contact Pitch：0.079 inch
- Durability：100 Cycles
- Insertion Force-Max：.5004 N
- Withdrawl Force-Min：.1668 N
- Features：Pick and Place
- Plating Thickness：10μin
- Contact Finish Thickness - Mating：10.0μin 0.25μm
- Contact Finish Thickness - Post：3.00μin 0.076μm
- Material Flammability Rating：UL94 V-0
- RoHS Status：ROHS3 Compliant
