CLE-154-01-G-DV-P-TR

Samtec Inc.
Rectangular Connectors - Headers, Receptacles, Female Sockets
Conn Socket Strip SKT 108 POS 0.8mm Solder ST SMD T/R
Date Sheet

在庫數 27

小計金額 $0.00000

仕様よくある質問

Factory Lead Time：3 Weeks
Mounting Type：Surface Mount
Contact Shape：Square
Contact Finish Mating：Gold
Contact Materials：Beryllium Copper
Insulation Materials：Liquid Crystal Polymer (LCP)
Operating Temperature：-55°C~125°C
Packaging：Tape & Reel (TR)
Series：CLE
Published：2016
JESD-609 Code：e4
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder
ECCN Code：EAR99
Connector Type：Receptacle, Pass Through
Number of Positions：108
Number of Rows：2
Gender：Female
Additional Feature：M.PICK&PLACE PAD,TAPE&REEL PKG
HTS Code：8536.69.40.40
Fastening Type：Push-Pull
Contact Type：Female Socket
Current Rating (Amps)：2.7A per Contact
Total Number of Contacts：108
Terminal Pitch：0.7874mm
Insulation Height：0.130 3.30mm
Style：Board to Board
Number of Positions Loaded：All
Pitch - Mating：0.031 0.80mm
Insulation Color：Black
Number of Conductors：ONE
Reference Standard：UL
Reliability：COMMERCIAL
Body Length or Diameter：1.701 inch
Row Spacing - Mating：0.047 (1.20mm)
Number Of PCB Rows：2
PCB Contact Pattern：RECTANGULAR
Contact Resistance：15mOhm
Insulation Resistance：5000000000Ohm
Mating Contact Pitch：0.031 inch
Polarization Key：POLARIZED HOUSING
Dielectric Withstanding Voltage：375VAC V
Insertion Force-Max：.556 N
Withdrawl Force-Min：.3336 N
Features：Pick and Place
Plating Thickness：10μin
Contact Finish Thickness - Mating：10.0μin 0.25μm
Contact Finish Thickness - Post：10.0μin 0.25μm
Material Flammability Rating：UL94 V-0
Radiation Hardening：No
RoHS Status：ROHS3 Compliant

在庫數 27

小計金額 $0.00000

類似スペック製品

CLE-154-01-G-DV-P-TR Samtec Inc.
見積かごへ在庫數 27
QRF8-054-05.0-L-D-DP-A-K Samtec Inc.
見積かごへ在庫數 31

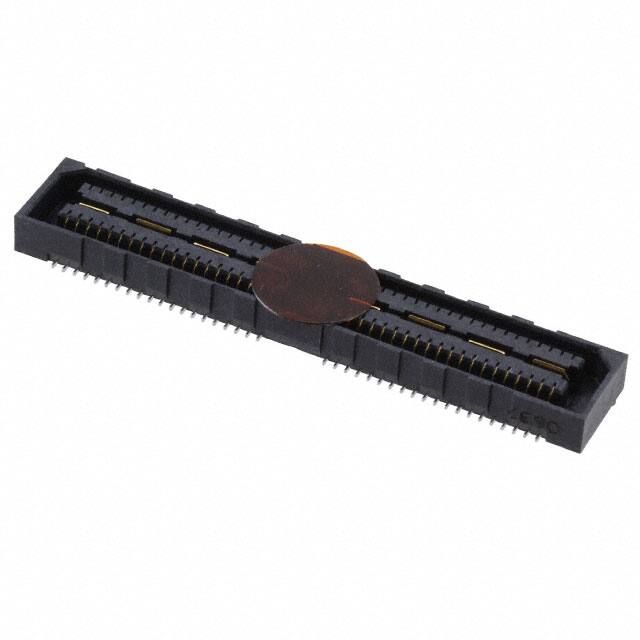

QSE-040-01-L-D-A-K Samtec Inc.
