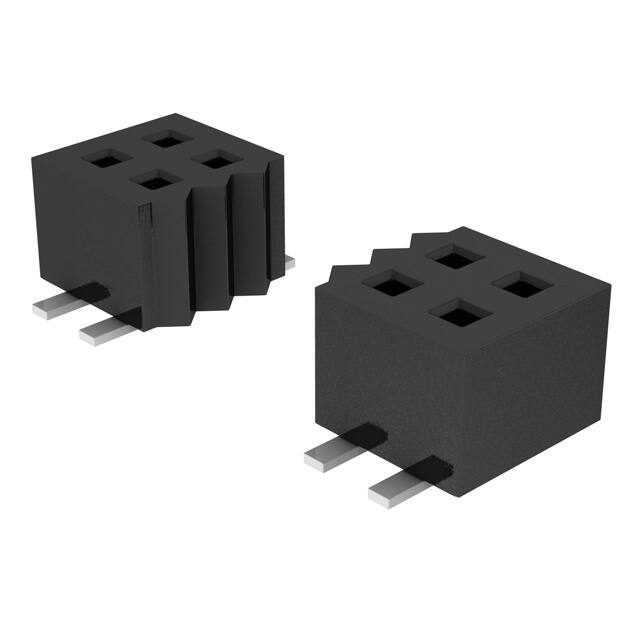

CLP-134-02-G-D-K

Samtec Inc.
Rectangular Connectors - Headers, Receptacles, Female Sockets
Conn Socket Strip SKT 68 POS 1.27mm Solder ST SMD Tube
Date Sheet

在庫數 42

1+： $7.28620
10+： $6.87378
100+： $6.48469
500+： $6.11764
1000+： $5.77136

小計金額 $7.28620

仕様よくある質問

Factory Lead Time：3 Weeks
Mounting Type：Surface Mount
Contact Shape：Square
Contact Finish Mating：Gold
Contact Materials：Phosphor Bronze
Insulation Materials：Liquid Crystal Polymer (LCP)
Operating Temperature：-55°C~125°C
Packaging：Tube
Series：CLP
Published：2016
JESD-609 Code：e4
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder
Connector Type：Receptacle
Number of Positions：68
Number of Rows：2
Gender：Female
Additional Feature：E.L.P., LOW PROFILE, TIGER CLAW
Fastening Type：Push-Pull
Voltage - Rated DC：340V
MIL Conformance：NO
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Female Socket
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：3.3A per Contact
Total Number of Contacts：68
Insulation Height：0.084 2.14mm
Style：Board to Board
Number of Positions Loaded：All
Pitch - Mating：0.050 1.27mm
Insulation Color：Black
Number of Conductors：ONE
Reference Standard：UL
Voltage - Rated AC：240V
Reliability：COMMERCIAL
Body Length or Diameter：0.667 inch
Row Spacing - Mating：0.050 (1.27mm)
Number Of PCB Rows：2
PCB Contact Pattern：RECTANGULAR
Mating Information：MULTIPLE MATING PARTS AVAILABLE
Body Depth：0.09 inch
Contact Resistance：10mOhm
Mating Contact Pitch：0.05 inch
Durability：100 Cycles
Withdrawl Force-Min：.556 N
Features：Pick and Place
Plating Thickness：10μin
Contact Finish Thickness - Mating：10.0μin 0.25μm
Contact Finish Thickness - Post：3.00μin 0.076μm
Material Flammability Rating：UL94 V-0
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free

在庫數 42

1+： $7.28620
10+： $6.87378
100+： $6.48469
500+： $6.11764
1000+： $5.77136

小計金額 $7.28620

類似スペック製品

CLP-134-02-G-D-K Samtec Inc.
最低価格$7.2862029 在庫數 42

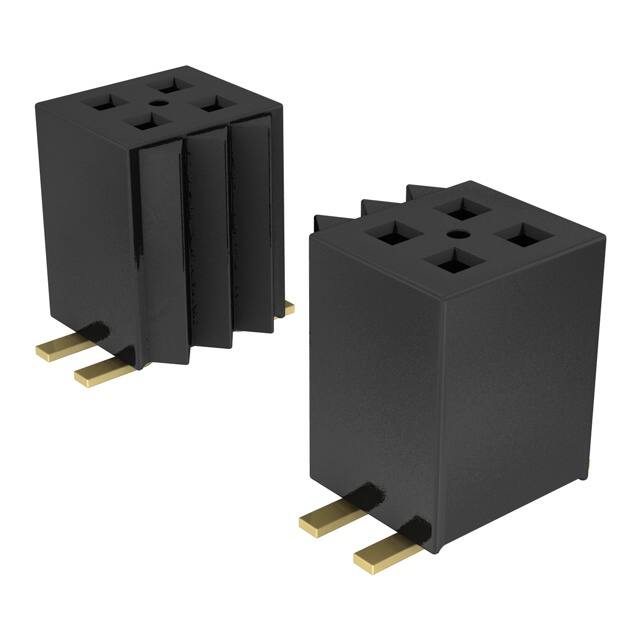

FLE-134-01-G-DV-A Samtec Inc.
