CLT-134-02-G-D-BE-P

Samtec Inc.
Rectangular Connectors - Headers, Receptacles, Female Sockets
Conn Socket Strip SKT 68 POS 2mm Solder ST SMD Tube
Date Sheet

在庫數 27

小計金額 $0.00000

仕様よくある質問

Factory Lead Time：3 Weeks
Mounting Type：Surface Mount
Contact Shape：Square
Contact Finish Mating：Gold
Contact Materials：Phosphor Bronze
Insulation Materials：Liquid Crystal Polymer (LCP)
Operating Temperature：-55°C~125°C
Packaging：Tube
Series：CLT
JESD-609 Code：e4
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder
Connector Type：Receptacle, Bottom Entry
Number of Positions：68
Number of Rows：2
Gender：Female
Additional Feature：BOTTOM ENTRY, E.L.P., LOW PROFILE, TIGER CLAW CONTACT
Fastening Type：Push-Pull
MIL Conformance：NO
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Female Socket
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：4.1A per Contact
Total Number of Contacts：68
Insulation Height：0.083 2.10mm
Style：Board to Board
Number of Positions Loaded：All
Pitch - Mating：0.079 2.00mm
Insulation Color：Black
Number of Conductors：ONE
Reference Standard：UL
Reliability：COMMERCIAL
Row Spacing - Mating：0.079 (2.00mm)
Number Of PCB Rows：2
PCB Contact Pattern：RECTANGULAR
Mating Information：MULTIPLE MATING PARTS AVAILABLE
Body Breadth：0.157 inch
Body Depth：0.084 inch
Contact Resistance：10mOhm
Mating Contact Pitch：0.079 inch
Durability：100 Cycles
Insertion Force-Max：.5004 N
Features：Pick and Place
Plating Thickness：10μin
Contact Finish Thickness - Mating：10.0μin 0.25μm
Contact Finish Thickness - Post：3.00μin 0.076μm
Material Flammability Rating：UL94 V-0
RoHS Status：ROHS3 Compliant

在庫數 27

小計金額 $0.00000

類似スペック製品

CLT-134-02-G-D-BE-P Samtec Inc.
見積かごへ在庫數 27

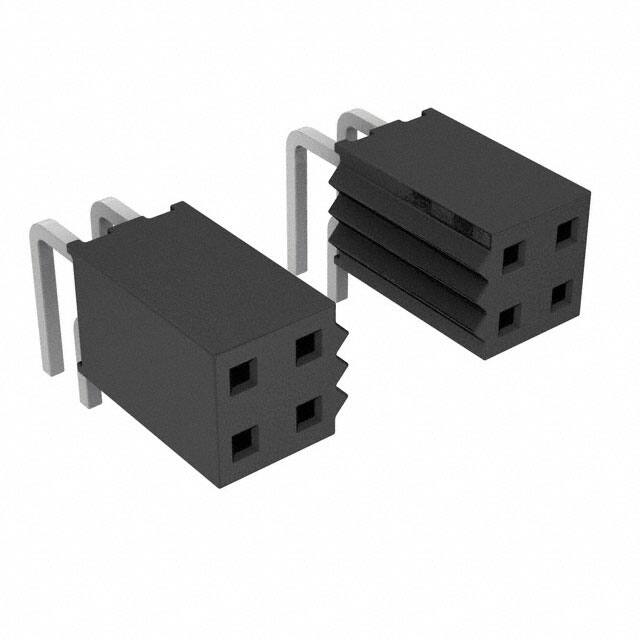

SQT-134-01-L-D-RA Samtec Inc.
