CLE-134-01-G-DV-A

Samtec Inc.
Rectangular Connectors - Headers, Receptacles, Female Sockets
SAMTEC CLE-134-01-G-DV-A Board-To-Board Connector, CLE Series, Surface Mount, Receptacle, 68 Contacts, 0.8 mm
Date Sheet

在庫數 6

1+： $9.28129
10+： $8.75593
100+： $8.26031
500+： $7.79275
1000+： $7.35165

小計金額 $9.28129

仕様よくある質問

Factory Lead Time：3 Weeks
Mount：Surface Mount
Mounting Type：Surface Mount
Contact Shape：Square
Contact Finish Mating：Gold
Contact Materials：Beryllium Copper
Insulation Materials：Liquid Crystal Polymer (LCP)
Operating Temperature：-55°C~125°C
Packaging：Tube
Series：CLE
Published：2013
JESD-609 Code：e4
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder
ECCN Code：EAR99
Connector Type：Receptacle, Pass Through
Number of Positions：68
Number of Rows：2
Gender：Receptacle
Additional Feature：TOP ENTRY, BOTTOM ENTRY
HTS Code：8536.69.40.40
Fastening Type：Push-Pull
MIL Conformance：NO
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Contact Type：Female Socket
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：2.7A per Contact
Total Number of Contacts：68
Terminal Pitch：0.8mm
Insulation Height：0.130 3.30mm
Style：Board to Board
Number of Positions Loaded：All
Pitch - Mating：0.031 0.80mm
Insulation Color：Black
Number of Conductors：ONE
Reference Standard：UL
Reliability：COMMERCIAL
Body Length or Diameter：1.071 inch
Row Spacing - Mating：0.047 (1.20mm)
Number Of PCB Rows：2
PCB Contact Pattern：RECTANGULAR
Mating Information：MULTIPLE MATING PARTS AVAILABLE
Contact Resistance：15mOhm
Insulation Resistance：5000000000Ohm
Mating Contact Pitch：0.031 inch
Polarization Key：POLARIZED HOUSING
Dielectric Withstanding Voltage：375VAC V
Insertion Force-Max：.556 N
Withdrawl Force-Min：.3336 N
Features：Board Guide
Plating Thickness：10μin
Contact Finish Thickness - Mating：10.0μin 0.25μm
Contact Finish Thickness - Post：10.0μin 0.25μm
Material Flammability Rating：UL94 V-0
REACH SVHC：No SVHC
RoHS Status：ROHS3 Compliant

在庫數 6

1+： $9.28129
10+： $8.75593
100+： $8.26031
500+： $7.79275
1000+： $7.35165

小計金額 $9.28129

類似スペック製品

CLE-134-01-G-DV-A Samtec Inc.
最低価格$9.2812869 在庫數 6

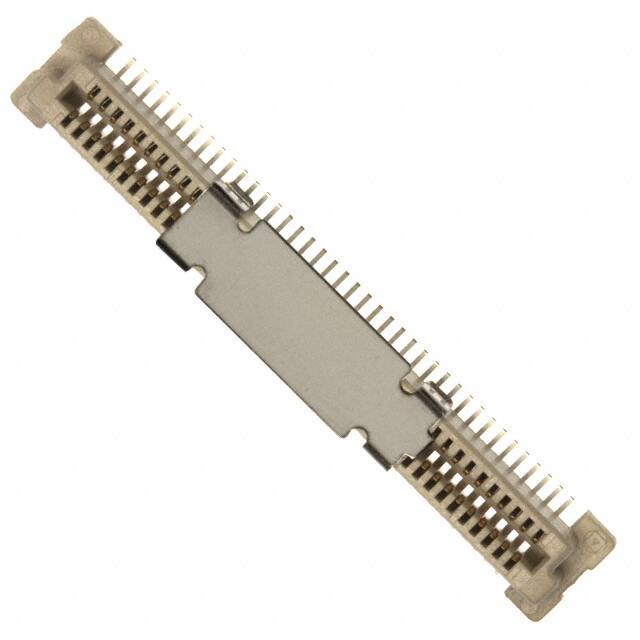

61082-081402LF Amphenol ICC (FCI)
最低価格$1.911426 在庫數 1800
QRF8-026-05.0-L-D-A Samtec Inc.
最低価格$6.9471657 在庫數 2786
QRF8-026-05.0-L-D-A-GP Samtec Inc.
最低価格$7.5236931 在庫數 171

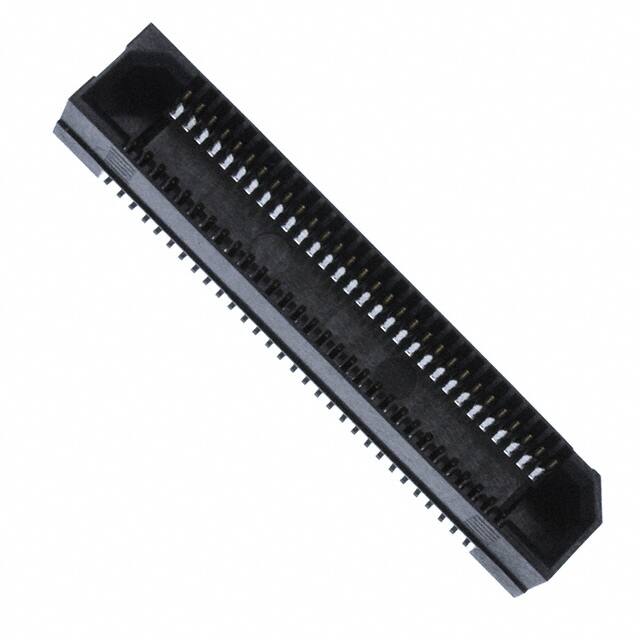

ERF8-030-05.0-S-DV-TR Samtec Inc.
