Home Connectors, Interconnects Rectangular Connectors - Headers, Receptacles, Female Sockets CLT-124-02-H-D-BE-A-P

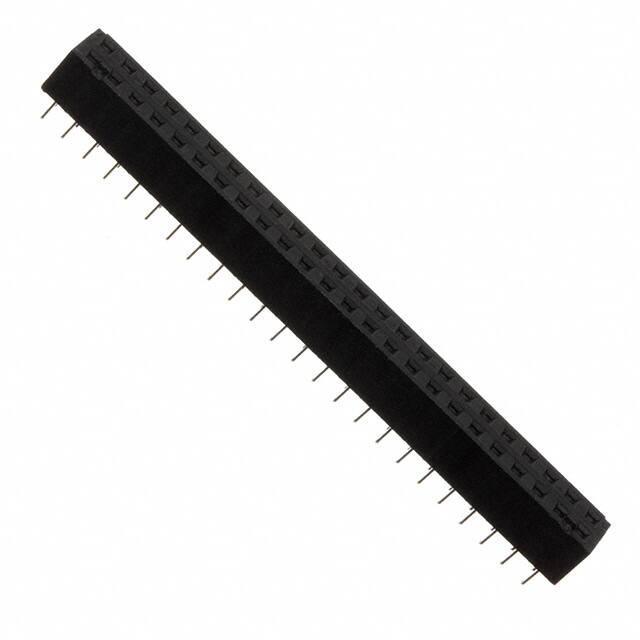

画像はあくまで参考です。
CLT-124-02-H-D-BE-A-P
-
Samtec Inc.
-
Rectangular Connectors - Headers, Receptacles, Female Sockets
- Conn Socket Strip SKT 48 POS 2mm Solder ST SMD
Date Sheet
在庫數 0
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：3 Weeks
- Mounting Type：Surface Mount
- Contact Shape：Square
- Contact Finish Mating：Gold
- Contact Materials：Phosphor Bronze
- Insulation Materials：Liquid Crystal Polymer (LCP)
- Operating Temperature：-55°C~125°C
- Packaging：Tube
- Series：CLT
- JESD-609 Code：e4
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder
- Connector Type：Receptacle, Bottom Entry
- Number of Positions：48
- Number of Rows：2
- Gender：Female
- Additional Feature：BOTTOM ENTRY, LOW PROFILE
- Fastening Type：Push-Pull
- MIL Conformance：NO
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Contact Type：Female Socket
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Current Rating (Amps)：4.1A per Contact
- Total Number of Contacts：48
- Insulation Height：0.083 2.10mm
- Style：Board to Board
- Number of Positions Loaded：All
- Reach Compliance Code：not_compliant
- Pitch - Mating：0.079 2.00mm
- Insulation Color：Black
- Row Spacing - Mating：0.079 (2.00mm)
- UL Flammability Code：94V-0
- Features：Board Guide, Pick and Place
- Contact Finish Thickness - Mating：30.0μin 0.76μm
- Contact Finish Thickness - Post：3.00μin 0.076μm
- Material Flammability Rating：UL94 V-0
- RoHS Status：ROHS3 Compliant
