Home Connectors, Interconnects Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) BTE-120-03-F-D-A-K

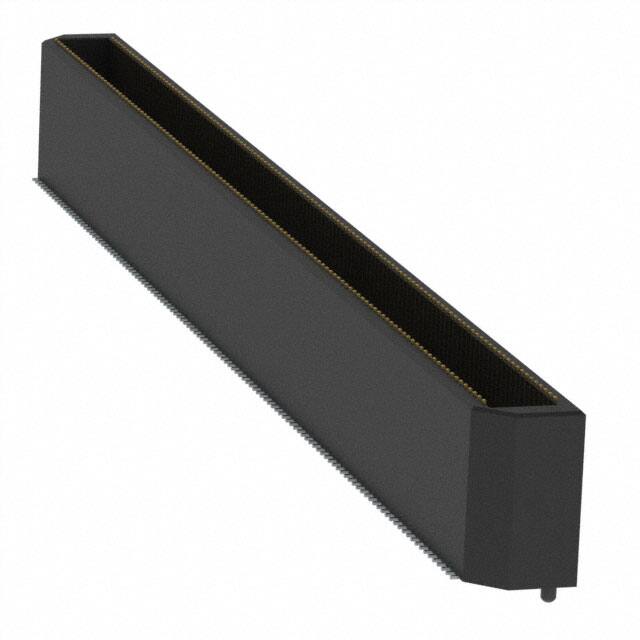

画像はあくまで参考です。
BTE-120-03-F-D-A-K
-
Samtec Inc.
-
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
- CONN HDR 240POS SMD GOLD
Date Sheet
在庫數 0
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：3 Weeks
- Mounting Type：Surface Mount
- Board Mounting Option：POSITIONING PIN
- Contact Materials：PHOSPHOR BRONZE
- Insulation Materials：LIQUID CRYSTAL POLYMER (LCP)
- Operating Temperature (Min.)：-65°C
- Packaging：Tube
- Series：BTE
- Published：2015
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- ECCN Code：EAR99
- Connector Type：Header, Outer Shroud Contacts
- Number of Positions：240
- Number of Rows：2
- Gender：MALE
- Additional Feature：PICK & PLACE PAD
- HTS Code：8536.69.40.40
- Pitch：0.031 0.80mm
- Number of Conductors：ONE
- Reference Standard：UL
- Contact Finish：Gold
- Reliability：COMMERCIAL
- Body Length or Diameter：3.937 inch
- Number Of PCB Rows：2
- Number of Contacts：240
- PCB Contact Pattern：RECTANGULAR
- Body Depth：0.404 inch
- Rated Current (Signal)：2A
- Contact Style：BELLOWED TYPE
- Row Spacing：6.096 mm
- Body/Shell Style：RECEPTACLE
- Polarization Key：ENDS
- Contact Pattern：RECTANGULAR
- Features：Board Guide
- Contact Finish Thickness：3.00μin 0.076μm
- Plating Thickness：FLASH inch
- Height Above Board：0.396 10.06mm
- Stack Height (Mating)：11.03mm
- RoHS Status：ROHS3 Compliant
