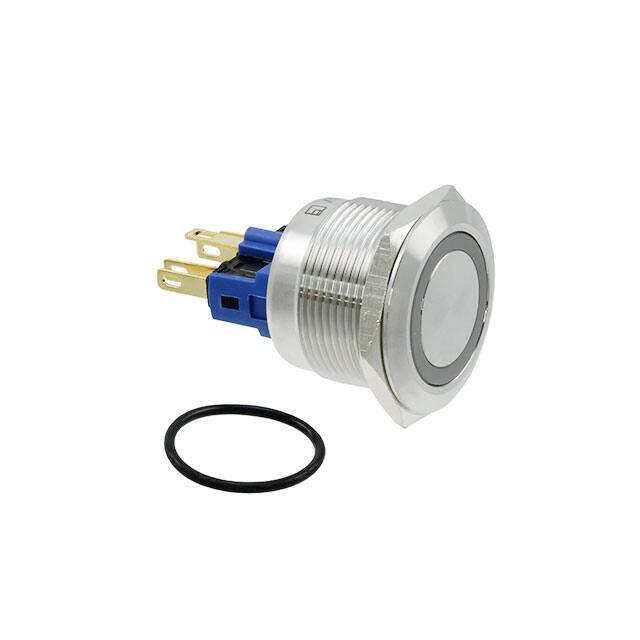

画像はあくまで参考です。
PV7F2T0SS-344-M03
-
E-Switch
-
Pushbutton Switches
- Illuminated Pushbutton Switches Illuminated, Sealed Anti-vandal switch
Date Sheet
在庫數 37
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：9 Weeks
- Mount：Bushing, Front, Panel
- Mounting Type：Panel Mount, Front
- Housing Material：Stainless Steel
- Terminal Material：BRASS
- ElectricalLife：50,000 Cycles
- Operating Temperature：-20°C~55°C
- Packaging：Bulk
- Series：PV7, LAMB
- Published：2012
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder
- ECCN Code：EAR99
- Type：Anti-Vandal, Illuminated
- Voltage - Rated DC：48V
- Current Rating (Amps)：2A DC
- Ingress Protection：IP65 - Dust Tight, Water Resistant
- Current Rating：2A
- Termination Style：Solder, Quick Connect - 0.110 (2.8mm)
- Actuator Type：Round, Button, Flush
- Circuit：DPST-NO/NC
- Switch Function：On-Off, Off-On
- Panel Cutout Dimensions：Circular - 22.00mm Dia
- Contact Resistance：0.05mOhm
- Insulation Resistance：1000000000Ohm
- Color - Actuator/Cap：Silver
- Contact Current(DC)-Max：2A
- Illumination Voltage (Nominal)：12VDC
- Illumination Type, Color：LED, Blue
- Dielectric Withstanding Voltage：2000VAC V
- Throw Configuration：DPST, SPDT
- Mechanical Life：1,000,000 Cycles
- Illumination Type：Illuminated, LED
- Illumination Color：Blue, Orange
- Hole Diameter：22 mm
- Contact (DC) Max Rating R Load：2A@48VDC
- Features：Power Symbol
- Body Height：8.509mm
- Length - Termination：0.405 inch
- Actuator Length：0.079 inch
- RoHS Status：ROHS3 Compliant
- Lead Free：Lead Free
- Ratings：Dust Tight, IP65, Water Resistant
在庫數 37
小計金額 $0.00000
