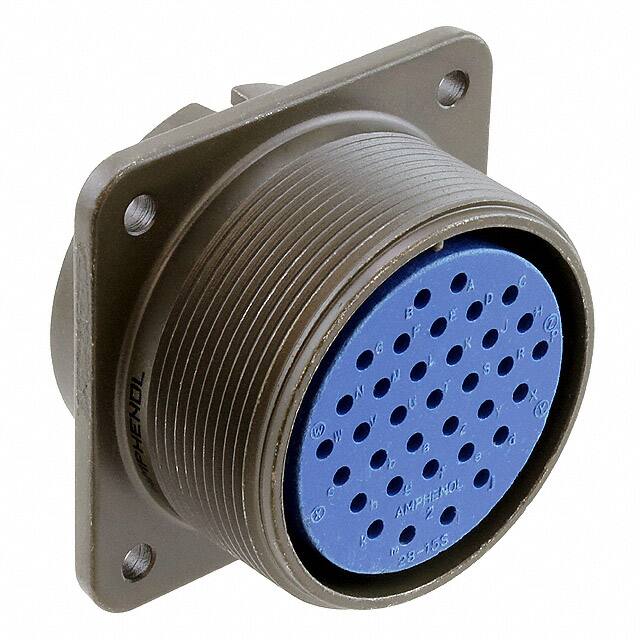

MS3102R28-15S

在庫數 10

小計金額 $54.53685

仕様よくある質問

Factory Lead Time：16 Weeks
Contact Plating：Silver, Gold
Mounting Type：Box, Flanges, Panel
Mounting Feature：Flange
Shell Material：Aluminum Alloy
Insert Material：Neoprene
Body Material：Aluminium
Contact Finish Mating：Silver
Contact Materials：Copper Alloy
Voltage Rated：700V
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：Military, MIL-DTL-5015
Published：2005
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
ECCN Code：EAR99
Connector Type：Receptacle, Female Sockets
Number of Positions：35
Color：Olive Drab
Applications：Marine, Military
Gender：Female
Additional Feature：STANDARD: MIL-C-5015, COMPATIBLE CONTACTS: 10-597107-161; 10-597107-171
HTS Code：8536.69.40.20
Fastening Type：Threaded
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Current Rating (Amps)：13A
Orientation：N (Normal)
Shielding：Unshielded
Ingress Protection：Environment Resistant
Depth：50.8mm
Military Standard：YES
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：28-15
Number of Contacts：35
Empty Shell：NO
Backshell Type：SOLID
Plating：Cadmium, Chromate
Wire Gauge (Max)：16 AWG
Wire Gauge (Min)：22 AWG
Body Plating：Cadmium
Cable Opening：1.625 (41.28mm)
Length：38.88mm
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：Non-RoHS Compliant
Ratings：Environment Resistant
