Home Integrated Circuits (ICs) Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers 502MLFT

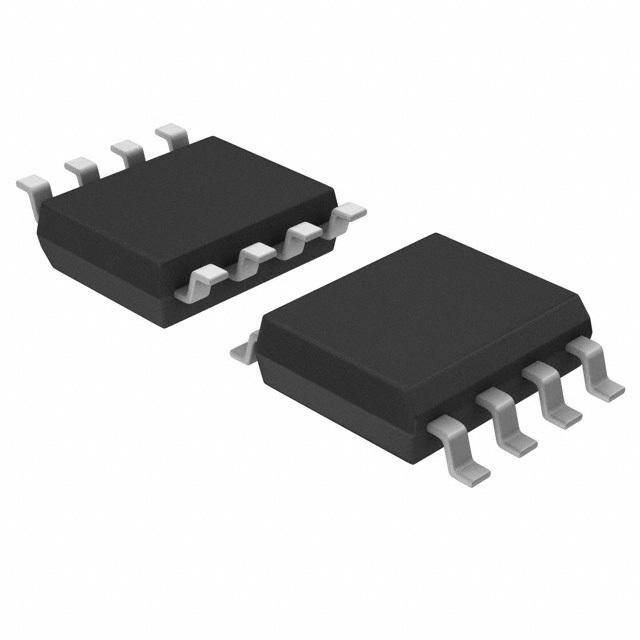

画像はあくまで参考です。
502MLFT
-
Integrated Device Technology (IDT)
-
Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
- SOIC N
- Clock Generator 2MHz to 50MHz Input 190MHz Output 8-Pin SOIC N T/R
Date Sheet
在庫數 0
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：7 Weeks
- Contact Plating：Tin
- Mount：Surface Mount
- Package / Case：SOIC N
- Number of Pins：8
- Frequency(Max)：190MHz
- Current - Supply (Nom)：20mA
- Packaging：Cut Tape
- Published：1999
- JESD-609 Code：e3
- Pbfree Code：yes
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Number of Terminations：8
- ECCN Code：EAR99
- Max Operating Temperature：70°C
- Min Operating Temperature：0°C
- Additional Feature：ALSO OPERATES AT 3.3V SUPPLY
- Voltage - Supply：5V
- Terminal Position：DUAL
- Terminal Form：GULL WING
- Peak Reflow Temperature (Cel)：260
- Time@Peak Reflow Temperature-Max (s)：30
- Pin Count：8
- Number of Outputs：2
- Power Supplies：5V
- Temperature Grade：COMMERCIAL
- Number of Circuits：1
- Current - Supply：20mA
- Input：Clock
- Primary Clock/Crystal Frequency-Nom：50MHz
- PLL：Yes
- Max Duty Cycle：55 %
- Voltage - Supply (Max)：5.5V
- Voltage - Supply (Min)：3V
- Length：4.9mm
- Width：3.9mm
- Thickness：1.5mm
- Radiation Hardening：No
- RoHS Status：RoHS Compliant
- Lead Free：Lead Free
