TPS3813K33DBVR

在庫數 30000

小計金額 $1.76051

仕様よくある質問

Lifecycle Status：ACTIVE (Last Updated: 5 days ago)
Factory Lead Time：6 Weeks
Mounting Type：Surface Mount

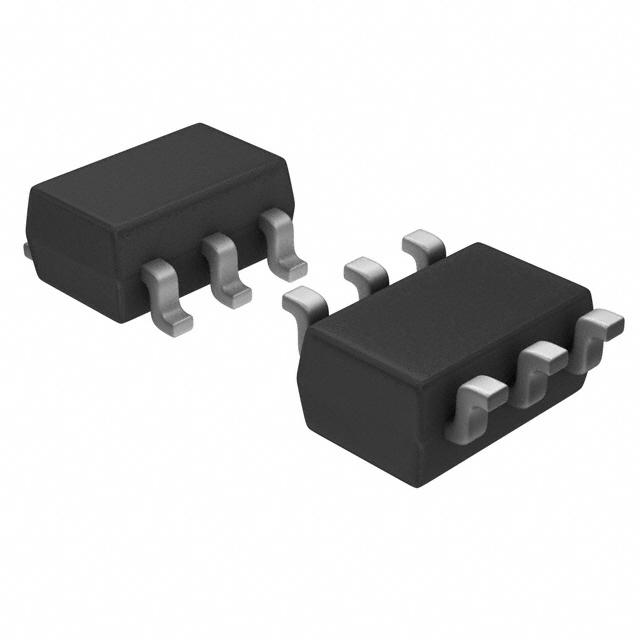

Package / Case：SOT-23-6
Surface Mount：YES
Number of Pins：6
Power Dissipation (Max)：437mW
Current - Supply (Nom)：25μA
Watchdog Timers：Yes
Operating Temperature：-40°C~85°C TA
Packaging：Tape & Reel (TR)
JESD-609 Code：e4
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Number of Terminations：6
ECCN Code：EAR99
Type：Simple Reset/Power-On Reset
Terminal Finish：Nickel/Palladium/Gold (Ni/Pd/Au)
Additional Feature：DETECTION THRESHOLD VOLTAGE IS 2.93V; POWER ON RESET GENERATOR
Voltage - Supply：3.3V
Terminal Position：DUAL
Terminal Form：GULL WING
Peak Reflow Temperature (Cel)：260
Number of Functions：1
Terminal Pitch：0.95mm
Base Part Number：TPS3813K33
Output：Open Drain or Open Collector
Current - Supply (Max)：25μA
Operating Supply Voltage：3.3V
Number of Channels：1
Power Dissipation：437mW
Adjustable Threshold：NO
Quiescent Current：9μA
Current - Supply：9μA
Reset：Active Low
Number of Voltages Monitored：1
Reset Timeout：20ms Minimum
Min Reset Threshold Voltage：2.87V
Max Reset Threshold Voltage：3V
Threshold Voltage：+2.93V
Undervoltage Threshold：2.93V
Overvoltage Threshold：3V
Voltage - Supply (Max)：6V
Voltage - Supply (Min)：2V
Height：1.45mm
Length：2.9mm
Width：1.6mm
Thickness：1.2mm
Radiation Hardening：No
RoHS Status：ROHS3 Compliant
Lead Free：Lead Free
