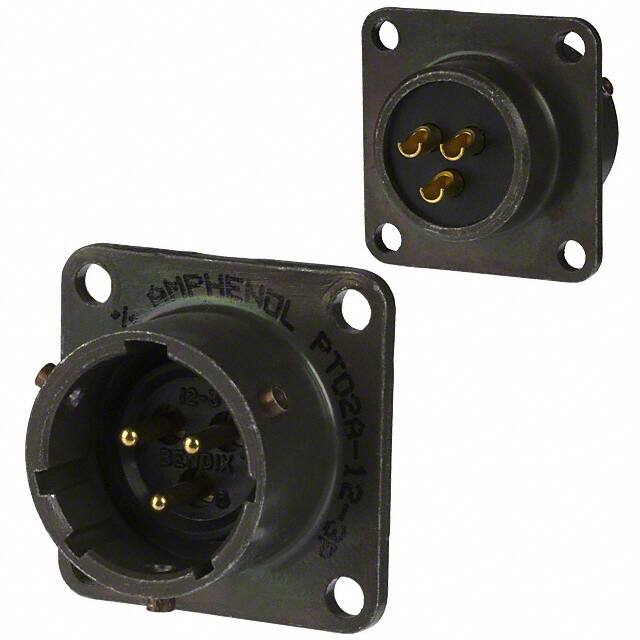

PT02E-12-3P

Amphenol Industrial Operations
Circular Connectors
Metal
Circular MIL Spec Connector 3P Size 12 Box Mount Pin Receptacle
Date Sheet

在庫數 10

1+： $15.17710
10+： $14.31802
100+： $13.50757
500+： $12.74299
1000+： $12.02169

小計金額 $15.17710

仕様よくある質問

Factory Lead Time：12 Weeks
Mount：Box, Flanges, Panel
Mounting Type：Panel Mount
Package / Case：Metal
Mounting Feature：Flange
Shell Material：Aluminum
Insert Material：Neoprene
Body Material：Aluminium
Contact Finish Mating：Gold
Contact Materials：Copper Alloy
Insulation Materials：Rubber
Voltage Rated：1kV
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：MIL-DTL-26482 Series I, PT
Published：2006
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
Connector Type：Receptacle, Male Pins
Number of Positions：3
Color：Olive Drab
Applications：Aerospace, Industrial, Instrumentation, Mass Transit, Military
Gender：Receptacle
Additional Feature：STANDARD: MIL-C-26482, POLARIZATION AVAILABLE
Fastening Type：Bayonet Lock
MIL Conformance：YES
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Total Number of Contacts：3
Orientation：N (Normal)
Shielding：Unshielded
Ingress Protection：Environment Sealed
Current Rating：13A
Military Standard：MIL-DTL-26482
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：12-3
Voltage - Rated AC：1kV
Approval Agency：UL
Contact Gender：Male
Empty Shell：NO
Backshell Type：SOLID
Contact Style：Pin
Environmental Characteristics：CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Plating：Cadmium, Chromate
Wire Gauge (Max)：20 AWG
Wire Gauge (Min)：16 AWG
Body Plating：Cadmium
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：Non-RoHS Compliant
Lead Free：Contains Lead
Ratings：Environment Resistant

在庫數 10

1+： $15.17710
10+： $14.31802
100+： $13.50757
500+： $12.74299
1000+： $12.02169

小計金額 $15.17710
