PT02E-14-19S

Amphenol Industrial Operations
Circular Connectors
Metal
Circular MIL Spec Connector 19P Sz 14 Box Mount Socket Receptacle
Date Sheet

在庫數 7100

小計金額 $0.00000

仕様よくある質問

Factory Lead Time：12 Weeks
Mount：Box, Flanges, Panel
Mounting Type：Panel Mount
Package / Case：Metal
Mounting Feature：Flange
Shell Material：Aluminum
Insert Material：Neoprene
Body Material：Aluminium
Contact Finish Mating：Gold
Contact Materials：Copper Alloy
Voltage Rated：600V
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：MIL-DTL-26482 Series I, PT
Published：2006
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
Connector Type：Receptacle, Female Sockets
Number of Positions：19
Color：Olive Drab
Applications：Aerospace, Industrial, Instrumentation, Mass Transit, Military
Gender：Receptacle
Additional Feature：STANDARD: MIL-C-26482, POLARIZATION AVAILABLE
Fastening Type：Bayonet Lock
MIL Conformance：YES
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Total Number of Contacts：19
Orientation：N (Normal)
Shielding：Unshielded
Ingress Protection：Environment Sealed
Current Rating：7.5A
Military Standard：MIL-DTL-26482
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：14-19
Approval Agency：UL
Contact Gender：Female
Empty Shell：NO
Backshell Type：SOLID
Contact Style：Socket
Environmental Characteristics：CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Plating：Cadmium, Chromate
Wire Gauge (Max)：24 AWG
Wire Gauge (Min)：20 AWG
Body Plating：Cadmium
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：Non-RoHS Compliant
Ratings：Environment Resistant

在庫數 7100

小計金額 $0.00000

類似スペック製品

PT02E-14-19S Amphenol Industrial Operations
見積かごへ在庫數 7100

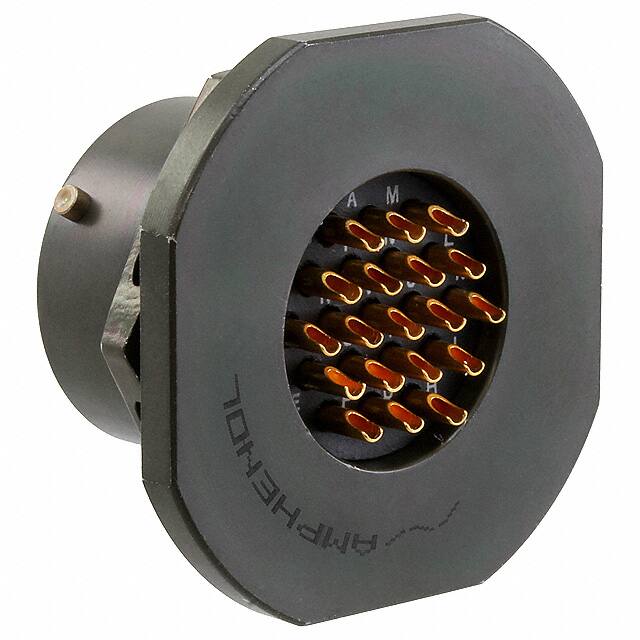

PT07A-14-19P Amphenol Industrial Operations
最低価格$25.4035755 在庫數 37
PT01A-14-19P Amphenol Industrial Operations
最低価格$35.0333649 在庫數 51
PT02A-14-19P Amphenol Industrial Operations
最低価格$19.8142596 在庫數 542

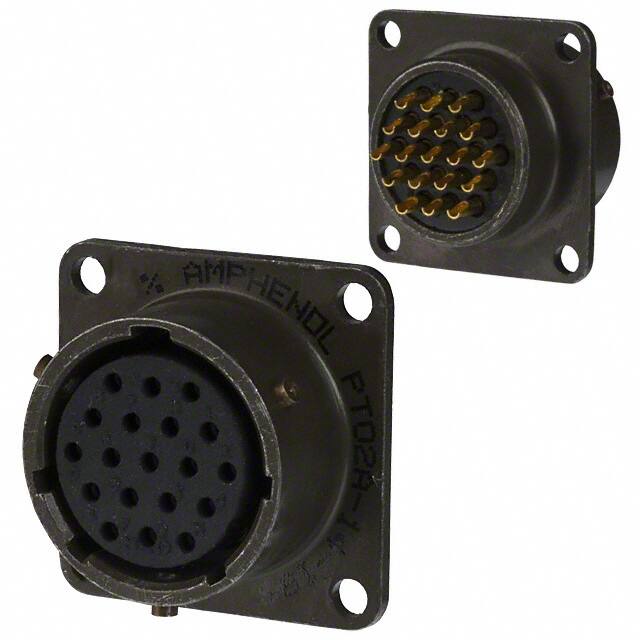

PT02A-14-19S Amphenol Industrial Operations
