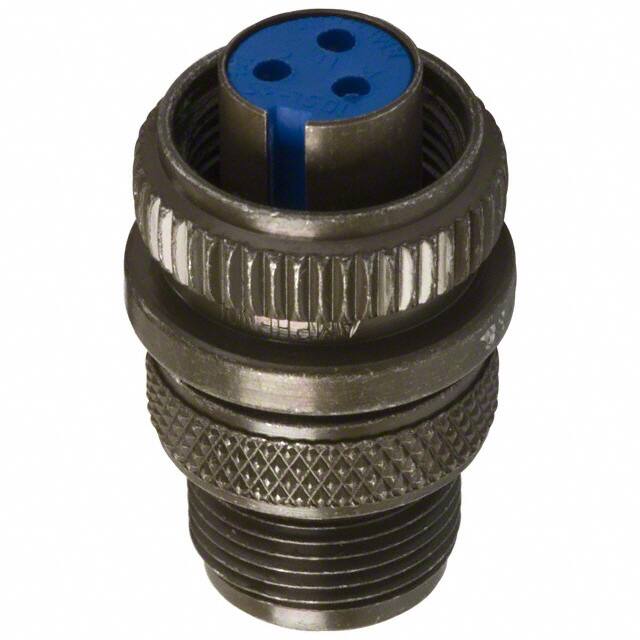

MS3106F10SL-3S
-
Amphenol Industrial Operations
-
Circular Connectors
- Metal
- Conn MIL-DTL-5015 Circular SKT 3 POS Solder ST Cable Mount 3 Terminal 1 Port
Date Sheet
在庫數 11
小計金額 $0.00000
仕様 よくある質問
- Factory Lead Time：14 Weeks
- Mounting Type：Cable, Free Hanging
- Package / Case：Metal
- Shell Material：Aluminum Alloy
- Material：Ferrite
- Insert Material：Neoprene
- Body Material：Aluminium
- Backshell Material, Plating：Aluminum Alloy, Olive Drab Chromate over Cadmium
- Contact Finish Mating：Silver
- Contact Materials：Copper Alloy
- Insulation Materials：Rubber
- Voltage Rated：700V
- Operating Temperature：-55°C~125°C
- Packaging：Bulk
- Series：Military, MIL-DTL-5015
- Published：2002
- JESD-609 Code：e4
- Part Status：Active
- Moisture Sensitivity Level (MSL)：Not Applicable
- Termination：Solder Cup
- Connector Type：Plug, Female Sockets
- Number of Positions：3
- Color：Olive Drab
- Applications：Marine, Military
- Gender：Female
- Fastening Type：Threaded
- Voltage - Rated DC：700V
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Current Rating (Amps)：13A
- Orientation：N (Normal)
- Shielding：Unshielded
- Ingress Protection：Environment Resistant
- Military Standard：YES
- Shell Finish：Olive Drab Chromate over Cadmium
- Shell Size - Insert：10SL-3
- Number of Contacts：3
- Mating Information：MULTIPLE MATING PARTS AVAILABLE
- Empty Shell：NO
- Backshell Type：SOLID
- Contact Style：Socket
- Environmental Characteristics：CORROSION/ENVIRONMENT/MOISTURE/VIBRATION RESISTANT
- Plating：Cadmium, Chromate
- Wire Gauge (Max)：20 AWG
- Wire Gauge (Min)：16 AWG
- Cable Opening：0.281 (7.14mm)
- Features：Backshell, Cable Clamp, Coupling Nut
- Length：54.07mm
- REACH SVHC：Unknown
- Radiation Hardening：No
- RoHS Status：Non-RoHS Compliant
- Lead Free：Contains Lead
- Ratings：Environment Resistant
