PT06E-12-8S(SR)

Amphenol Industrial Operations
Circular Connectors
Metal

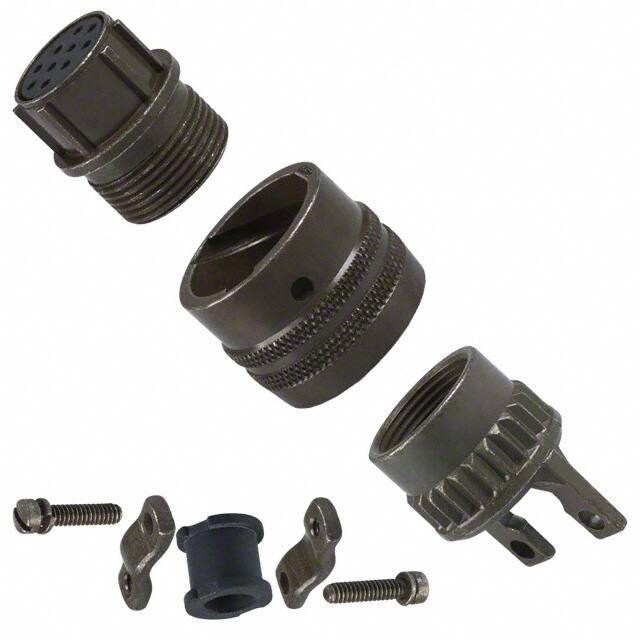

AMPHENOL PT06E12-8S-SR Circular Connector, PT Series, MIL-DTL-26482 Series I Equivalent, Straight Plug, 8, Solder Socket
Date Sheet

在庫數 3562

1+： $34.04474
10+： $32.11767
100+： $30.29969
500+： $28.58462
1000+： $26.96662

小計金額 $34.04474

仕様よくある質問

Factory Lead Time：12 Weeks
Mount：Cable, Free Hanging
Mounting Type：Free Hanging (In-Line)
Package / Case：Metal
Shell Material：Aluminum
Insert Material：Neoprene
Body Material：Aluminium
Backshell Material, Plating：Aluminum, Olive Drab Cadmium
Contact Finish Mating：Gold
Contact Materials：Copper Alloy
Insulation Materials：Rubber
Voltage Rated：600V
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：MIL-DTL-26482 Series I, PT
Published：2005
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
Connector Type：Plug, Female Sockets
Number of Positions：8
Color：Olive Drab
Applications：Aerospace, Industrial, Instrumentation, Mass Transit, Military
Fastening Type：Bayonet Lock
MIL Conformance：YES
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Total Number of Contacts：8
Orientation：N (Normal)
Shielding：Unshielded
Ingress Protection：Environment Sealed
Current Rating：7.5A
Military Standard：MIL-DTL-26482
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：12-8
Voltage - Rated AC：600V
Approval Agency：UL
Contact Gender：Female
Empty Shell：NO
Backshell Type：SOLID
Contact Style：Socket
Environmental Characteristics：CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Plating：Cadmium, Chromate
Wire Gauge (Max)：24 AWG
Wire Gauge (Min)：20 AWG
Body Plating：Cadmium
Features：Backshell, Cable Clamp, Coupling Nut
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：Non-RoHS Compliant
Lead Free：Contains Lead
Ratings：Environment Resistant
