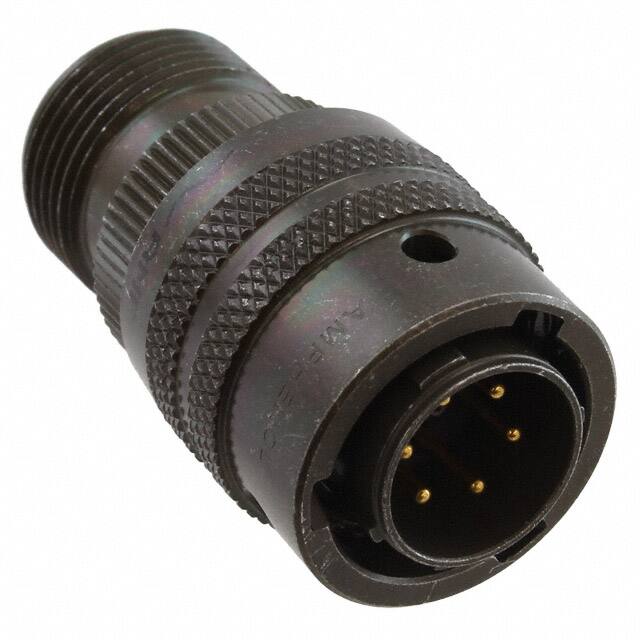

画像はあくまで参考です。
PT06E-12-8P
-
Amphenol Industrial Operations
-
Circular Connectors
- Circular MIL Spec Connector 8P Size 12 Straight Pin Plug
Date Sheet
在庫數 121
- 1+： $13.45872
- 10+： $12.69690
- 100+： $11.97821
- 500+： $11.30020
- 1000+： $10.66056
小計金額 $13.45872
仕様 よくある質問
- Factory Lead Time：12 Weeks
- Mounting Type：Cable, Free Hanging
- Shell Material：Aluminum
- Insert Material：Neoprene
- Body Material：Aluminium
- Backshell Material, Plating：Aluminum, Olive Drab Cadmium
- Voltage Rated：600V
- Contact Finish Mating：Gold
- Contact Materials：Copper Alloy
- Series：MIL-DTL-26482 Series I, PT
- Published：2005
- Operating Temperature：-55°C~125°C
- Packaging：Bulk
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder Cup
- Connector Type：Plug, Male Pins
- Number of Positions：8
- Color：Olive Drab
- Applications：Aerospace, Industrial, Instrumentation, Mass Transit, Military
- Gender：Male
- Fastening Type：Bayonet Lock
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Current Rating (Amps)：7.5A
- Orientation：N (Normal)
- Shielding：Unshielded
- Ingress Protection：Environment Sealed
- Military Standard：YES
- Shell Finish：Olive Drab Chromate over Cadmium
- Shell Size - Insert：12-8
- Voltage - Rated AC：600V
- Approval Agency：UL
- Number of Contacts：8
- Empty Shell：NO
- Backshell Type：SOLID
- Contact Style：Pin
- Environmental Characteristics：CORROSION/ENVIRONMENT/MOISTURE RESISTANT
- Plating：Cadmium, Chromate
- Wire Gauge (Max)：24 AWG
- Wire Gauge (Min)：20 AWG
- Body Plating：Cadmium
- Features：Backshell, Coupling Nut
- REACH SVHC：Unknown
- Radiation Hardening：No
- RoHS Status：Non-RoHS Compliant
- Ratings：Environment Resistant
在庫數 121
- 1+： $13.45872
- 10+： $12.69690
- 100+： $11.97821
- 500+： $11.30020
- 1000+： $10.66056
小計金額 $13.45872
