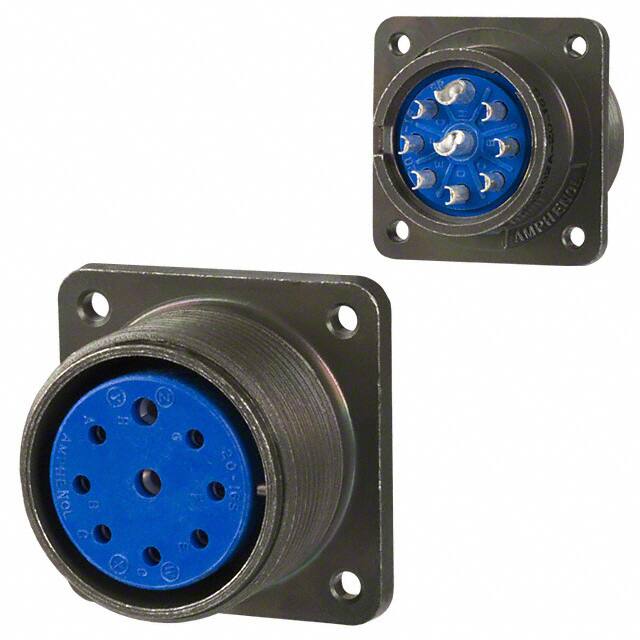

画像はあくまで参考です。
97-3102A-20-16P
-
Amphenol Industrial Operations
-
Circular Connectors
- Metal
- CONN RECEPT BOX MNT 9POS W/PINS
Date Sheet
在庫數 44
- 1+： $13.90981
- 10+： $13.12246
- 100+： $12.37968
- 500+： $11.67894
- 1000+： $11.01787
小計金額 $13.90981
仕様 よくある質問
- Factory Lead Time：14 Weeks
- Mount：Box, Chassis, Flanges, Panel
- Mounting Type：Panel Mount
- Package / Case：Metal
- Mounting Feature：Flange
- Shell Material：Aluminum Alloy
- Insert Material：Diallyl Phthalate (DAP)
- Body Material：Aluminium
- Contact Finish Mating：Silver
- Contact Materials：Copper Alloy
- Insulation Materials：Plastic
- Voltage Rated：700V
- Operating Temperature：-55°C~125°C
- Packaging：Bulk
- Series：97
- Published：2005
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder Cup
- Connector Type：Receptacle, Male Pins
- Number of Positions：9
- Color：Olive Drab
- Applications：Automotive, Industrial
- Gender：Receptacle
- Additional Feature：STANDARD: MIL-C-5015
- Fastening Type：Threaded
- Voltage - Rated DC：700V
- MIL Conformance：YES
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Total Number of Contacts：9
- Orientation：N (Normal)
- Shielding：Unshielded
- Depth：38.1mm
- Current Rating：23A
- Military Standard：MIL-DTL-5015
- Shell Finish：Olive Drab Chromate over Cadmium
- Shell Size - Insert：20-16
- Approval Agency：CSA, UL
- Mating Information：MULTIPLE MATING PARTS AVAILABLE
- Contact Gender：Male
- Empty Shell：NO
- Backshell Type：SOLID
- Contact Style：Pin
- Environmental Characteristics：ENVIRONMENT RESISTANT
- Plating：Cadmium, Chromate
- Wire Gauge (Max)：14 AWG
- Wire Gauge (Min)：12 AWG
- Body Plating：Cadmium
- Length：34.92mm
- REACH SVHC：No SVHC
- Radiation Hardening：No
- RoHS Status：Non-RoHS Compliant
- Lead Free：Contains Lead
在庫數 44
- 1+： $13.90981
- 10+： $13.12246
- 100+： $12.37968
- 500+： $11.67894
- 1000+： $11.01787
小計金額 $13.90981
