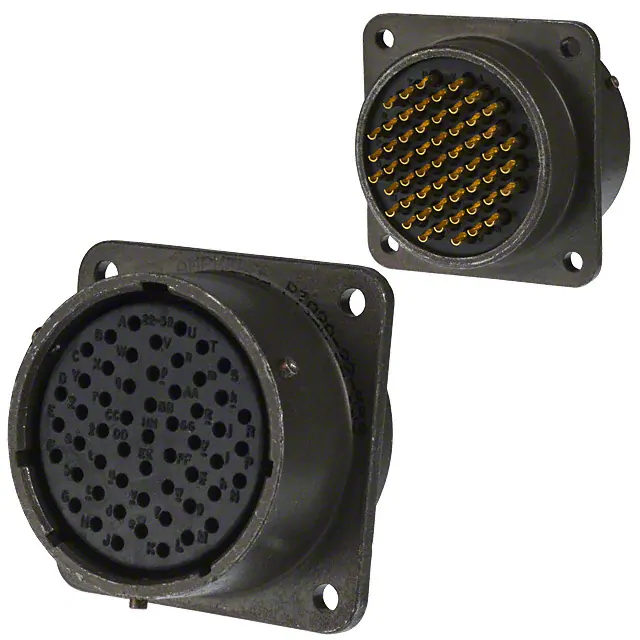

画像はあくまで参考です。
MS3112E22-55P
-
Amphenol Industrial Operations
-
Circular Connectors
- Circular MIL Spec Connector 55P #20 PIN CONTACTS
Date Sheet
在庫數 2132
- 1+： $106.60636
- 10+： $100.57204
- 100+： $94.87928
- 500+： $89.50876
- 1000+： $84.44222
小計金額 $106.60636
仕様 よくある質問
- Factory Lead Time：32 Weeks
- Mount：Box, Flanges, Panel
- Mounting Type：Panel Mount
- Mounting Feature：Flange
- Shell Material：Aluminum
- Insert Material：Neoprene
- Body Material：Aluminium
- Contact Finish Mating：Gold
- Contact Materials：Copper Alloy
- Insulation Materials：Rubber
- Voltage Rated：600V
- Operating Temperature：-55°C~125°C
- Packaging：Bulk
- Series：Military, MIL-DTL-26482 Series I, PT
- Published：2006
- Part Status：Active
- Moisture Sensitivity Level (MSL)：Not Applicable
- Termination：Solder Cup
- ECCN Code：EAR99
- Connector Type：Receptacle, Male Pins
- Number of Positions：55
- Color：Olive Drab
- Applications：Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
- Gender：Receptacle
- Additional Feature：STANDARD: MIL-C-26482
- HTS Code：8536.69.40.20
- Fastening Type：Bayonet Lock
- MIL Conformance：YES
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Total Number of Contacts：55
- Orientation：N (Normal)
- Shielding：Unshielded
- Ingress Protection：Environment Resistant
- Current Rating：7.5A
- Military Standard：MIL-DTL-26482
- Shell Finish：Olive Drab Chromate over Cadmium
- Shell Size - Insert：22-55
- Voltage - Rated AC：600V
- Approval Agency：UL
- Mating Information：NO
- Contact Gender：Male
- Empty Shell：NO
- Backshell Type：SOLID
- Contact Style：Pin
- Plating：Cadmium, Chromate
- Wire Gauge (Max)：24 AWG
- Wire Gauge (Min)：20 AWG
- REACH SVHC：No SVHC
- Radiation Hardening：No
- RoHS Status：Non-RoHS Compliant
- Lead Free：Contains Lead
- Ratings：Environment Resistant
在庫數 2132
- 1+： $106.60636
- 10+： $100.57204
- 100+： $94.87928
- 500+： $89.50876
- 1000+： $84.44222
小計金額 $106.60636
