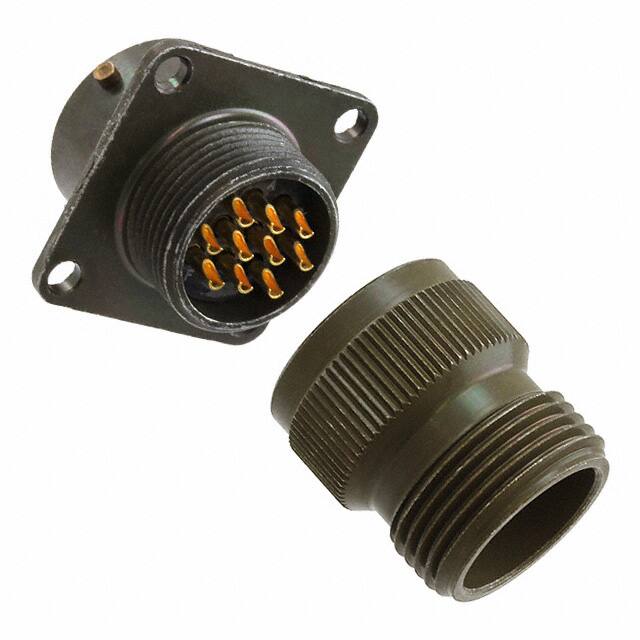

画像はあくまで参考です。
PT02E-12-10P
-
Amphenol Industrial Operations
-
Circular Connectors
- Metal
- CONN RCPT MALE 10POS SOLDER CUP
Date Sheet
在庫數 1153
- 1+： $19.36012
- 10+： $18.26427
- 100+： $17.23044
- 500+： $16.25513
- 1000+： $15.33503
小計金額 $19.36012
仕様 よくある質問
- Factory Lead Time：12 Weeks
- Mounting Type：Box, Flanges, Panel
- Package / Case：Metal
- Mounting Feature：Flange
- Shell Material：Aluminum
- Insert Material：Neoprene
- Body Material：Aluminium
- Contact Finish Mating：Gold
- Contact Materials：Copper Alloy
- Insulation Materials：Rubber
- Voltage Rated：600V
- Operating Temperature：-55°C~125°C
- Packaging：Bulk
- Series：MIL-DTL-26482 Series I, PT
- Published：2006
- Part Status：Active
- Moisture Sensitivity Level (MSL)：1 (Unlimited)
- Termination：Solder Cup
- Connector Type：Receptacle, Male Pins
- Number of Positions：10
- Color：Olive Drab
- Applications：Aerospace, Industrial, Instrumentation, Mass Transit, Military
- Gender：Male
- Additional Feature：STANDARD: MIL-C-26482, POLARIZATION AVAILABLE
- Fastening Type：Bayonet Lock
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Current Rating (Amps)：7.5A
- Orientation：N (Normal)
- Shielding：Unshielded
- Ingress Protection：Environment Sealed
- Depth：26.18mm
- Military Standard：YES
- Shell Finish：Olive Drab Chromate over Cadmium
- Shell Size - Insert：12-10
- Voltage - Rated AC：600V
- Approval Agency：UL
- Number of Contacts：10
- Empty Shell：NO
- Backshell Type：SOLID
- Contact Style：Pin
- Environmental Characteristics：CORROSION/ENVIRONMENT/MOISTURE RESISTANT
- Plating：Cadmium, Chromate
- Wire Gauge (Max)：24 AWG
- Wire Gauge (Min)：20 AWG
- Length：24.33mm
- REACH SVHC：Unknown
- Radiation Hardening：No
- RoHS Status：Non-RoHS Compliant
- Lead Free：Contains Lead
- Ratings：Environment Resistant
在庫數 1153
- 1+： $19.36012
- 10+： $18.26427
- 100+： $17.23044
- 500+： $16.25513
- 1000+： $15.33503
小計金額 $19.36012
