PT01A-14-5S

Amphenol Industrial Operations
Circular Connectors

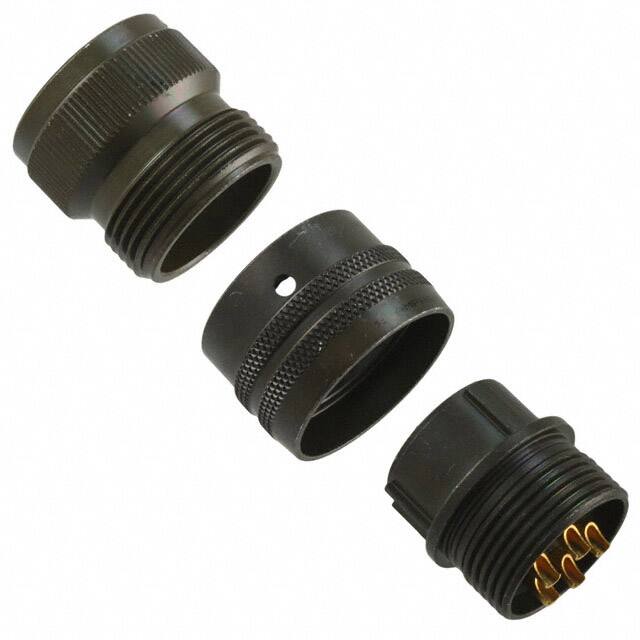

AMPHENOL PT01A14-5S Circular Connector, PT Series, MIL-DTL-26482 Series I Equivalent, Cable Mount Receptacle, 5
Date Sheet

在庫數 70

1+： $41.39538
10+： $39.05224
100+： $36.84174
500+： $34.75636
1000+： $32.78902

小計金額 $41.39538

仕様よくある質問

Factory Lead Time：16 Weeks
Mount：Cable, Flanges, Free Hanging
Mounting Type：Free Hanging (In-Line)
Shell Material：Aluminum
Insert Material：Neoprene
Body Material：Aluminium
Backshell Material, Plating：Aluminum, Olive Drab Cadmium
Contact Finish Mating：Gold
Contact Materials：Copper Alloy
Voltage Rated：1kV
Operating Temperature：-55°C~125°C
Packaging：Bulk
Series：MIL-DTL-26482 Series I, PT
Published：2006
Part Status：Active
Moisture Sensitivity Level (MSL)：1 (Unlimited)
Termination：Solder Cup
Connector Type：Receptacle, Female Sockets
Number of Positions：5
Color：Olive Drab
Applications：Aerospace, Industrial, Instrumentation, Mass Transit, Military
Gender：Receptacle
Additional Feature：STANDARD: MIL-C-26482, POLARIZATION AVAILABLE
Fastening Type：Bayonet Lock
MIL Conformance：YES
DIN Conformance：NO
IEC Conformance：NO
Filter Feature：NO
Mixed Contacts：NO
Option：GENERAL PURPOSE
Total Number of Contacts：5
Orientation：N (Normal)
Shielding：Unshielded
Current Rating：13A
Military Standard：MIL-DTL-26482
Shell Finish：Olive Drab Chromate over Cadmium
Shell Size - Insert：14-5
Voltage - Rated AC：1kV
Approval Agency：UL
Contact Gender：Female
Empty Shell：NO
Backshell Type：SOLID
Contact Style：Socket
Environmental Characteristics：CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Plating：Cadmium, Chromate
Wire Gauge (Max)：20 AWG
Wire Gauge (Min)：16 AWG
Body Plating：Cadmium
Features：Backshell
REACH SVHC：No SVHC
Radiation Hardening：No
RoHS Status：Non-RoHS Compliant

在庫數 70

1+： $41.39538
10+： $39.05224
100+： $36.84174
500+： $34.75636
1000+： $32.78902

小計金額 $41.39538
